Adapter 90°, -16 AN JICF » -16 ORBM, BLK
Quick Overview
- 90-degree adapter, -16 AN JIC female to -16 ORB male
- Swivel nut lets you aim the line
- FKM (Viton) O-ring seals the ORB end
- No tape or sealant needed
- E85 compatible, black anodized 6061-T6 aluminum
Show More
$39.99
per EACH (USD)90° Swivel Adapter, -16 AN JIC Female to -16 AN ORB Male, Black
Turns a -16 ORB port 90 degrees to a -16 AN JIC female swivel.

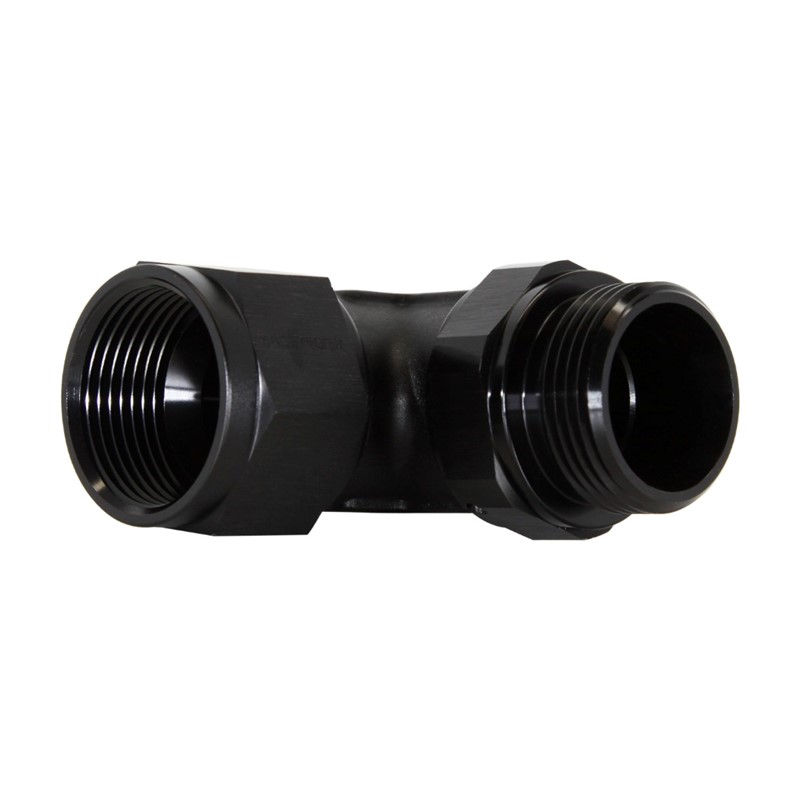

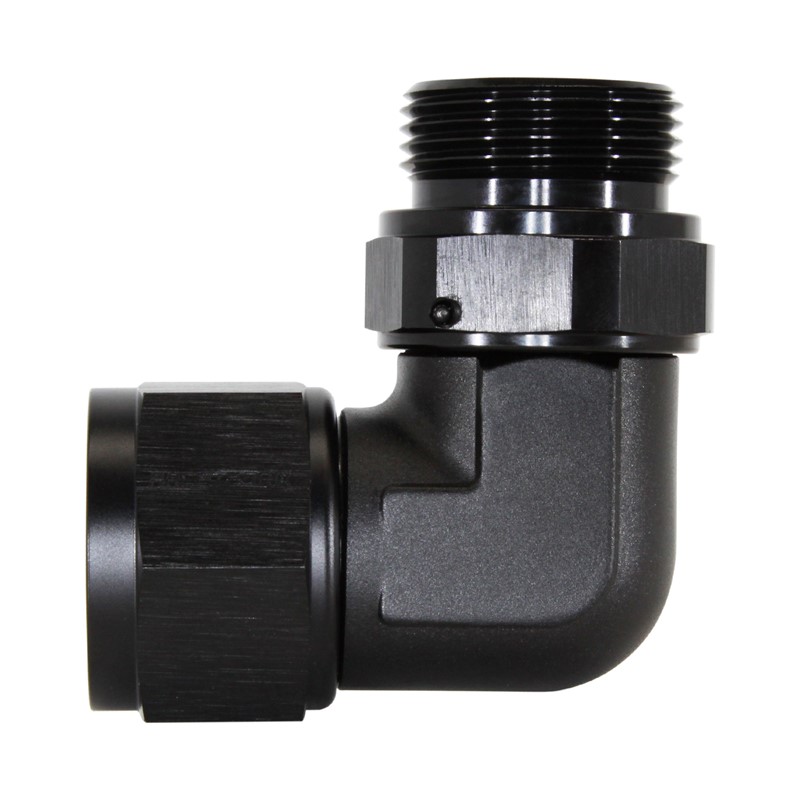

The Racetronix ADF-16JF9016R is a 90-degree adapter with a -16 AN O-ring boss (ORB) male on one end and a -16 AN JIC female swivel (37° flare) on the other. Screw the ORB end into a -16 ORB port and thread the swivel onto a -16 AN male hose end, union or fitting. The swivel lets you aim and tighten the line without twisting the hose.
AN male (JIC) fittings with a matching -16 AN ORB O-ring can also be used in -16 ORB ports.
Key features
- -16 AN ORB male with FKM (Viton) O-ring.
- -16 AN JIC female swivel (37° flare).
- 90-degree body.
- E85 compatible.
- 6061-T6 aluminum, black anodized.
The ORB end seals on its O-ring against the port face and the JIC end seals metal to metal on its 37° flare. Neither seals on the threads, so do not use Teflon tape or thread sealant on either end.
Specifications
| Part number | ADF-16JF9016R |
| ORB end | -16 AN ORB male (SAE J1926), 1-5/16"-12 thread, FKM (Viton) O-ring |
| JIC end | -16 AN JIC female swivel, 1-5/16"-12 thread, 37° flare |
| Body | 90-degree elbow |
| Material | 6061-T6 aluminum, black anodized |
| Fuel compatibility | Gasoline and E85 |
Related adapters

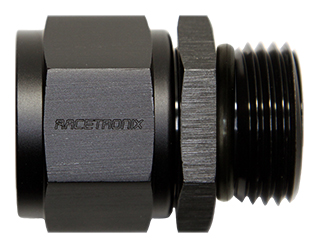

Straight versions in other sizes: AN JIC Female to AN ORB Male Adapters.
Frequently asked questions
What does it connect to?
The ORB end fits a -16 AN ORB port (1-5/16"-12) on a pump, filter, tank or rail. The swivel threads onto any -16 AN male (37° JIC) hose end, union or fitting.
Do I need thread sealant or tape?
No. The O-ring and the flare do the sealing. Tape or sealant can stop them from seating, and pieces of tape can get into the fuel system.
Is it E85 compatible?
Yes. It is made from 6061-T6 aluminum and black anodized, and works with gasoline and E85.
