Bosch Fuel Injector, 28 lb/hr, 296 cc/min, USCAR EV 14K
Quick Overview
- Genuine Bosch High-Performance Fuel Injector
- 28 lb/hr, 213 g/min, 296 cc/min @ 300 kPa
- EV 14K (Compact) Body Type
- 20° Split-stream with dual cone spray (E-Type)
- High-impedance, USCAR Electrical connection
Show More
$40.42
$40.99
per EACH (USD)Bosch EV14 Fuel Injector - 28 lb/hr (296cc)
Genuine Bosch | Part #: 0 280 158 189
Product Overview
The Bosch 0 280 158 189 is a specialized EV 14 injector featuring the "Compact" (K) body geometry. As confirmed by the Bosch variant table, this unit features a Type E (Dual Cone) spray pattern with a specific 7° Bent Spray Angle (Gamma). This angled spray is designed to target intake valves that are offset from the injector mounting bore, ensuring optimal atomization and preventing wall-wetting.

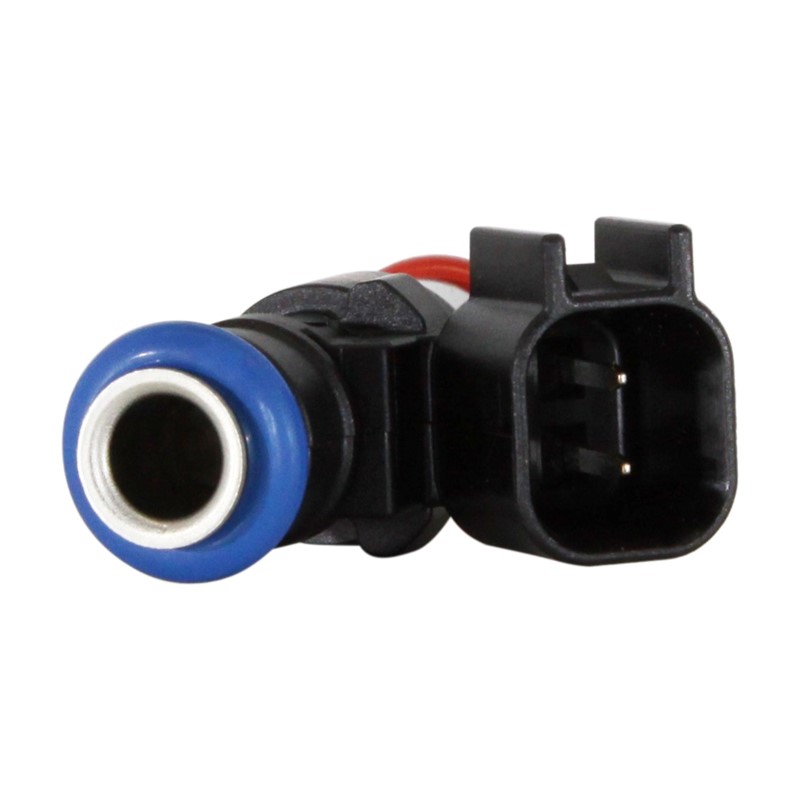

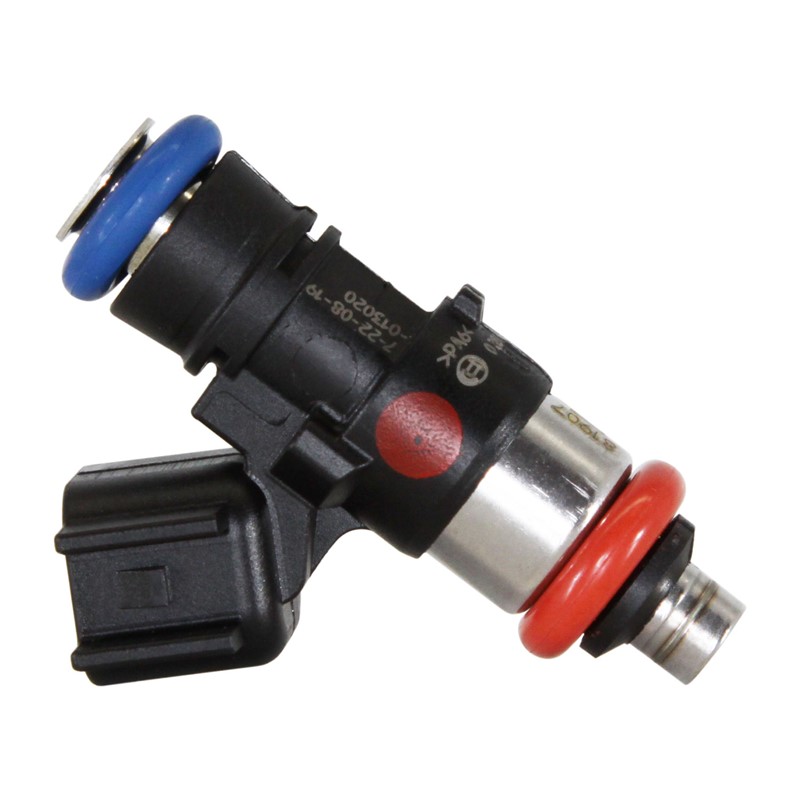

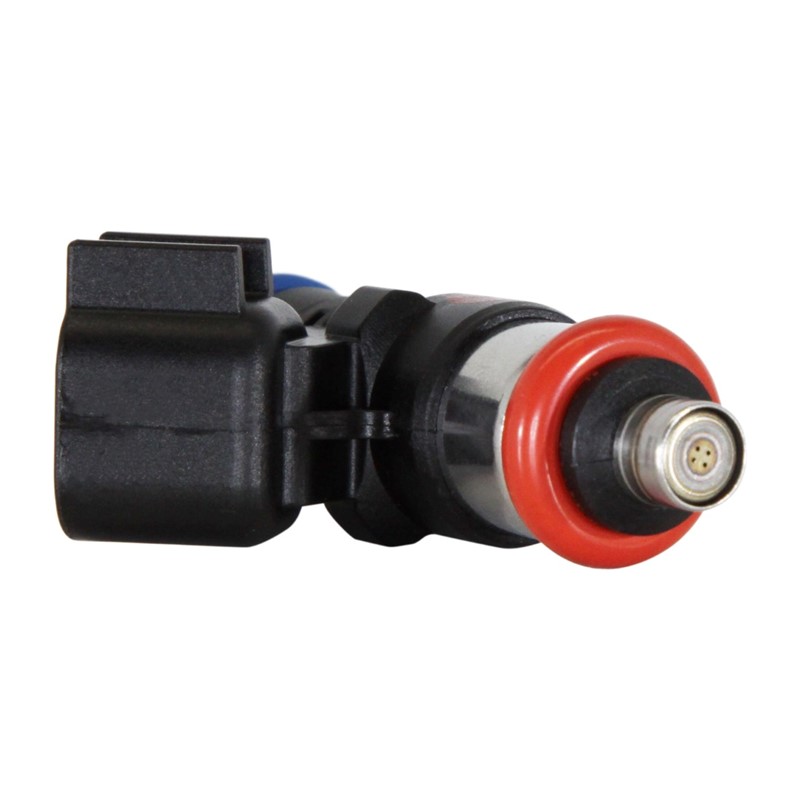

Configuration Note: This unit is verified to have Blue (Upper) and Red (Lower) O-rings.
- Flow Capacity: Rated at 28 lb/hr / 296 cc/min (213 g/min) at 300 kPa (43.5 PSI).
- Volumetric Flow: ~310 cc/min (N-Heptane) / ~296 cc/min (Gasoline). *See Tech Note
- Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue Upper / Red Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
- Electrical Connection: Features a standard USCAR / EV6 connector housing.
20° (Split Angle)
7° (Bent Angle)
200° (Rotation)
*Connector is clocked 200° relative to the spray bend.
Technical Specifications
213 g/min
~310 cc/min
~296 cc/min
Dimensions & Fitment
The 0280158189 uses the EV 14 K (Compact) body geometry. It is the shortest standard EV14 length (33.6mm O-ring to O-ring).
*Diagram illustrates the EV14 family sizes. This product is the EV 14 K (Second from Left).
Technical Note: Flow Rating & Fluids
Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:
Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)- N-Heptane (0.684 g/cc): 213 ÷ 0.684 = 311.4 cc/min (Industry Standard Rating)
- Gasoline (~0.720 g/cc): 213 ÷ 0.720 = 295.8 cc/min (Real World Estimate)
- Factory new Genuine Bosch High-Performance Fuel Injector.
- Factory installed o-rings top and bottom.
- Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
- Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
- Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
*Data Integrity Disclaimer: This specification data is derived from the official Bosch EV14 Variant Table. Please confirm your specific application requirements regarding the 7° spray bend angle prior to installation.
