Bosch Fuel Injector, 28 lb/hr, 296 cc/min, USCAR EV 14S
Quick Overview
- Genuine Bosch High-Performance Fuel Injector
- 28 lb/hr, 213 g/min, 296 cc/min @ 300 kPa
- EV 14S (Standard) Body Type
- 14° Conical spray pattern
- High-impedance, USCAR Electrical connection
Show More
$39.83
$59.99
per EACH (USD)Bosch EV14 Fuel Injector - 28 lb/hr (296cc)
Genuine Bosch | Part #: 0 280 158 049
Product Overview
The Bosch 0 280 158 049 is a high-performance EV 14 injector featuring the "Standard" (S) body geometry (48.65mm). Commonly known as the "28lb" or "296cc" injector, this unit features a modern USCAR / EV6 connector and a Type C (Single Cone) spray pattern with a tight 14-degree Cone Angle for precise fuel targeting.

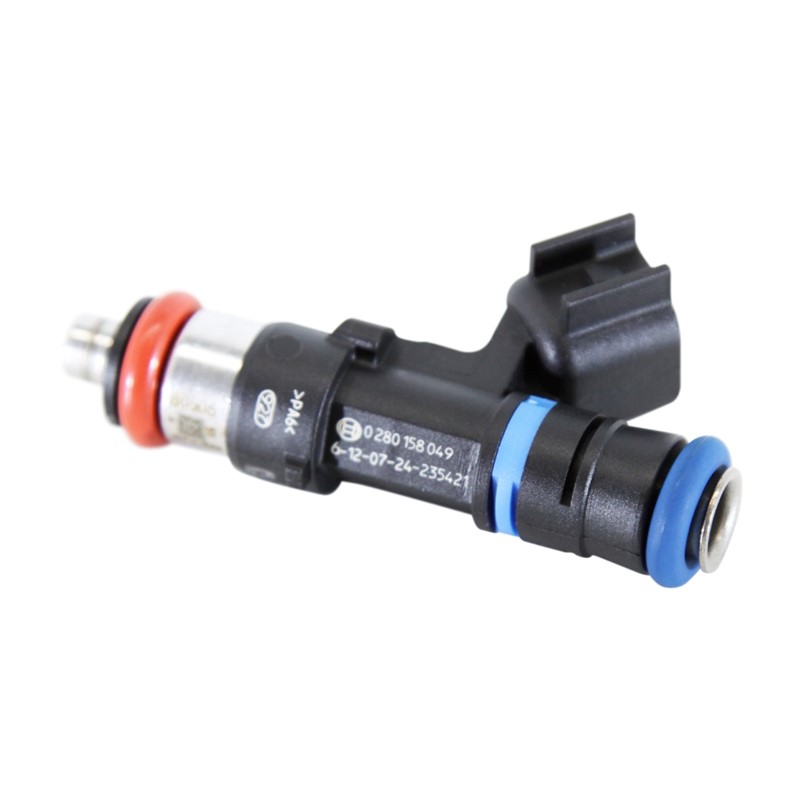

Visual Check: This specific part number is identified by its O-ring color combination: Blue (Top) and Red (Bottom).
- Flow Capacity: Rated at 28 lb/hr / 296 cc/min (213 g/min) at 300 kPa (43.5 PSI).
- Volumetric Flow: ~311 cc/min (N-Heptane) / ~296 cc/min (Gasoline). *See Tech Note
- Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue Upper / Red Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
- Electrical Connection: Features a standard USCAR / EV6 connector housing.
14° (Cone Angle)
0° (Bent Angle)
0° (Rotation)
*Single Cone spray is uniform (Rotation is typically neutral).
Technical Specifications
213 g/min
~311 cc/min
~296 cc/min

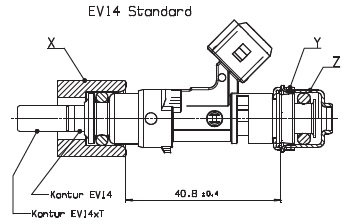

Dimensions & Fitment
The 0280158049 uses the EV 14 S (Standard) body geometry. Please verify fitment using the diagrams below.
*This unit is the Standard length (3rd from Left).
Technical Note: Flow Rating & Fluids
Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:
Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)- N-Heptane (0.684 g/cc): 213 ÷ 0.684 = 311.4 cc/min (Industry Standard Rating)
- Gasoline (~0.720 g/cc): 213 ÷ 0.720 = 295.8 cc/min (Real World Estimate)
- Factory new Genuine Bosch High-Performance Fuel Injector.
- Factory installed o-rings top and bottom.
- Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
- Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
- Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
*Data Integrity Disclaimer: This specification data is derived from official Bosch technical documentation. We strongly recommend that your tuner verifies all flow and latency (dead-time) data prior to final calibration.
