Bosch Fuel Injector, 34 lb/hr, 362 cc/min, USCAR EV 14K
Quick Overview
- Genuine Bosch High-Performance Fuel Injector
- 34 lb/hr, 261 g/min, 362 cc/min @ 300 kPa
- EV 14K (Compact) Body Type
- 14° Conical spray pattern (C-Type)
- High-impedance, USCAR Electrical connection
Show More
$51.99
$58.96
per EACH (USD)Bosch EV14 Fuel Injector - 34 lb/hr (362cc)
Genuine Bosch | Part #: 0 280 158 051
Product Overview

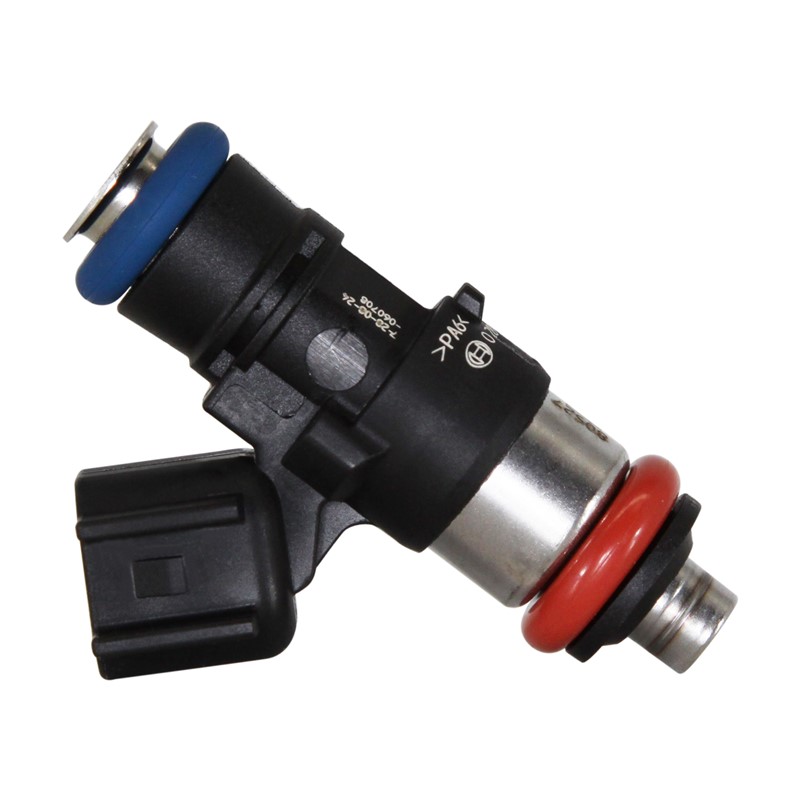

The Bosch 0 280 158 051 is a high-performance EV 14 injector featuring the "Compact" (K) body geometry (33.6mm). Commonly known as the "34lb" or "362cc" injector, this unit features a modern USCAR / EV6 connector and a Type C (Single Cone) spray pattern with a tight 14-degree Cone Angle for precise intake port targeting.

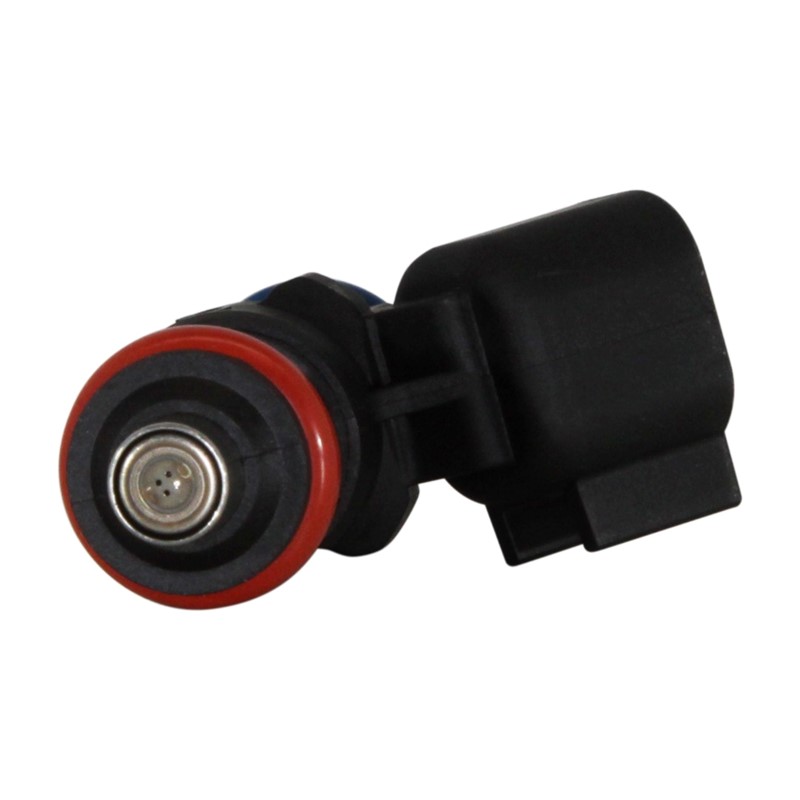

Configuration Note: This unit is verified to have Blue (Upper) and Red (Lower) O-rings.
- Flow Capacity: Rated at 34 lb/hr / 362 cc/min (261 g/min) at 300 kPa (43.5 PSI).
- Volumetric Flow: ~382 cc/min (N-Heptane) / ~362 cc/min (Gasoline). *See Tech Note
- Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue Upper / Red Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.

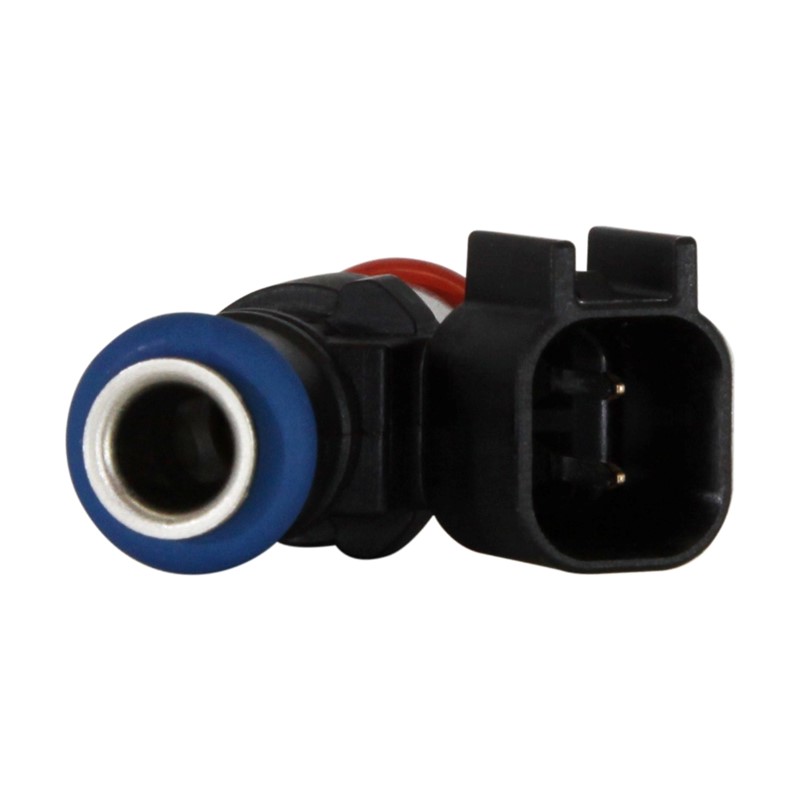

- Electrical Connection: Features a standard USCAR / EV6 connector housing.
14° (Cone Angle)
0° (Bent Angle)
0° (Rotation)
*Single Cone spray is uniform (Rotation is typically neutral).
Technical Specifications
261 g/min
~382 cc/min
~362 cc/min
Dimensions & Fitment
The 0280158051 uses the EV 14 K (Compact) body geometry. It is the shortest standard EV14 length (33.6mm O-ring to O-ring).
*Diagram illustrates the EV14 family sizes. This product is the EV 14 K (Second from Left).
Technical Note: Flow Rating & Fluids
Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:
Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)- N-Heptane (0.684 g/cc): 261 ÷ 0.684 = 381.6 cc/min (Industry Standard Rating)
- Gasoline (~0.720 g/cc): 261 ÷ 0.720 = 362.5 cc/min (Real World Estimate)
- Factory new Genuine Bosch High-Performance Fuel Injector.
- Factory installed o-rings top and bottom.
- Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
- Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
- Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
*Data Integrity Disclaimer: This specification data is derived from official Bosch technical documentation. We strongly recommend that your tuner verifies all flow and latency (dead-time) data prior to final calibration.
