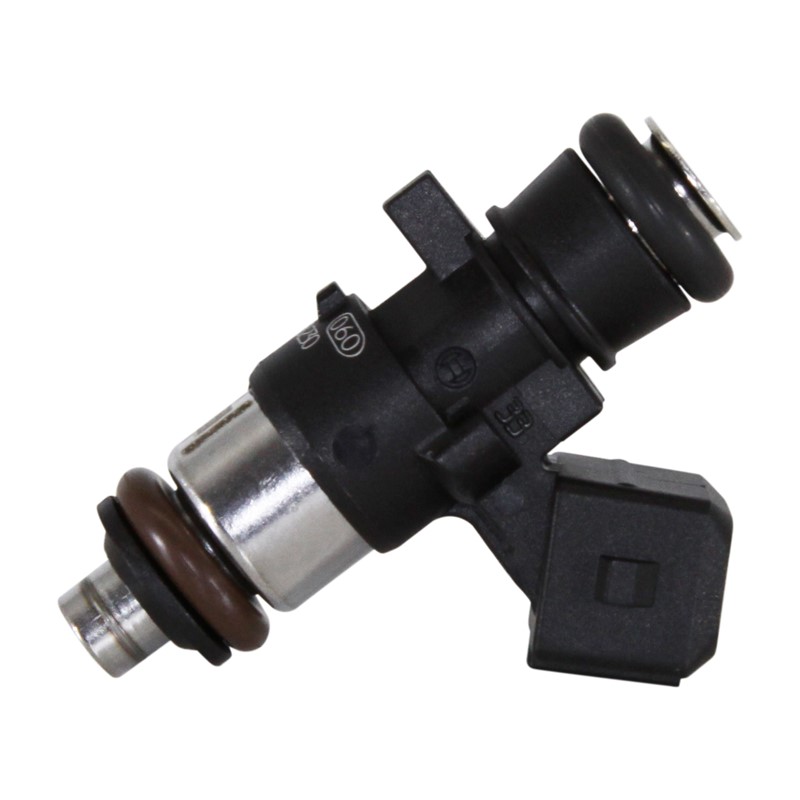

Bosch Fuel Injector, 35 lb/hr, 363 cc/min, Jetronic EV 14K
Quick Overview
- Genuine Bosch High-Performance Fuel Injector
- 35 lb/hr, 261 g/min, 363 cc/min @ 300 kPa
- EV 14K (Compact) Body Type
- 22° Split-stream with 14° dual cone spray (E-Type)
- High-impedance, Jetronic/Minitimer Electrical connection
Show More
$71.86
$84.99
per EACH (USD)Bosch EV14 Fuel Injector - 35 lb/hr (363cc)
Genuine Bosch Motorsport | Part #: 0 280 158 230
Product Overview
The Bosch 0 280 158 230 is a specialized high-performance EV 14 injector. It combines the modern "Compact" (K) body geometry with a legacy Jetronic / Minitimer (EV1) connector. This unique configuration makes it an excellent option for retrofitting modern EV14 technology into older European or Domestic applications that utilize the older square-style EV1 harness connectors.
- Flow Capacity: Rated at 35 lb/hr / 363 cc/min (261 g/min) at 300 kPa (43.5 PSI).
- Volumetric Flow: ~381 cc/min (N-Heptane) / ~363 cc/min (Gasoline). *See Tech Note

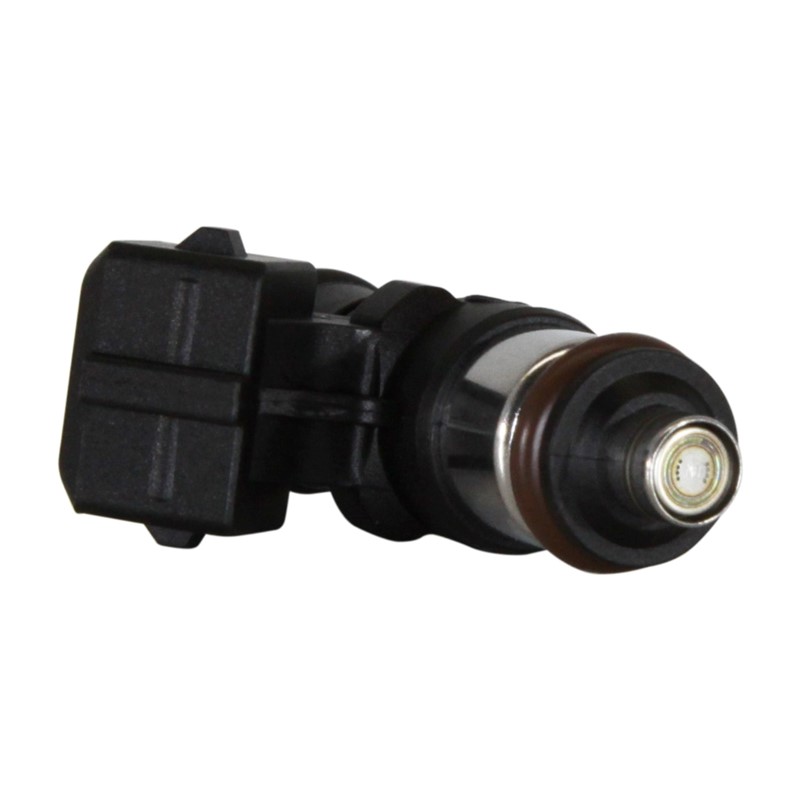

- Fuel & Seal Compatibility: Features high-quality Viton O-rings (Black Upper / Brown Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.

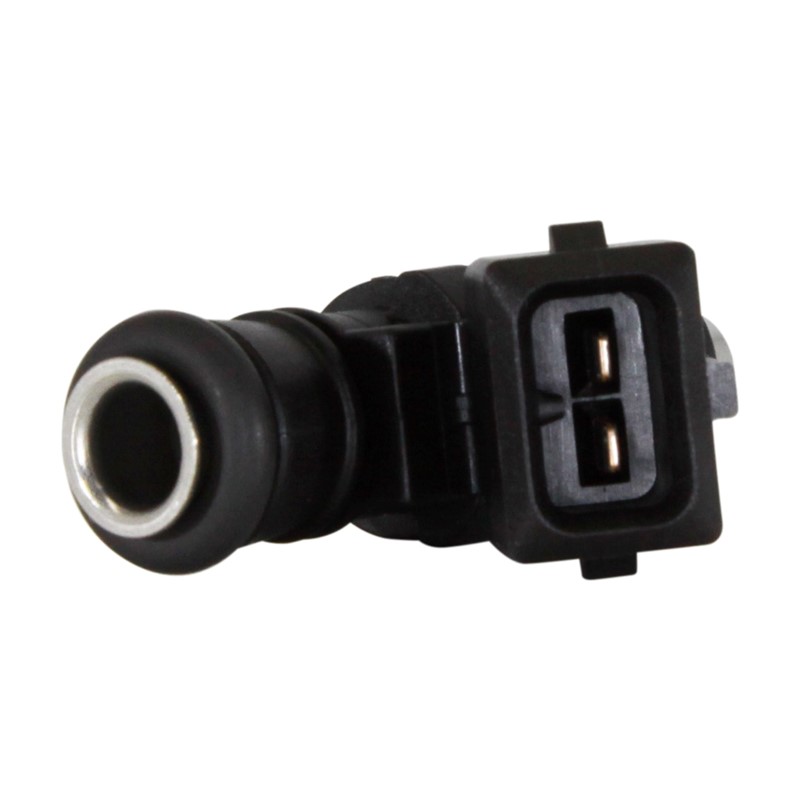

- Electrical Connection: Features a Jetronic / Minitimer (EV1) connector housing (Square).
Beta (ß): 14° (Cone)
Gamma (?): 0° (Straight)
*Diagram defines spray angles (a, ß, ?, d) relative to connector.
Technical Specifications
261 g/min
~381 cc/min
~363 cc/min
Dimensions & Fitment
The 0280158230 uses the EV 14 K (Compact) body geometry. It is the shortest standard EV14 length (33.6mm O-ring to O-ring).
*Diagram illustrates the EV14 family sizes. This product is the EV 14 K (Second from Left).
Technical Note: Flow Rating & Fluids
Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:
Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
- N-Heptane (0.684 g/cc): 261 ÷ 0.684 = 381.6 cc/min (Industry Standard Rating)
- Gasoline (~0.720 g/cc): 261 ÷ 0.720 = 362.5 cc/min (Real World Estimate)
- Factory new Genuine Bosch High-Performance Fuel Injector.
- Factory installed o-rings top and bottom.
- Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
- Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix. Flow matching is only available on specific pre-packaged sets (packs) when and if available. Purchasing multiple individual units does not guarantee a matched set.
- Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
*Data Integrity Disclaimer: While we strive for absolute accuracy, some specifications for this part number (such as specific spray angles or OEM-specific O-ring colors) are derived from industry cross-reference data where official Bosch Motorsport documentation is unavailable. We strongly recommend that your tuner verifies all flow and latency (dead-time) data prior to final calibration.
