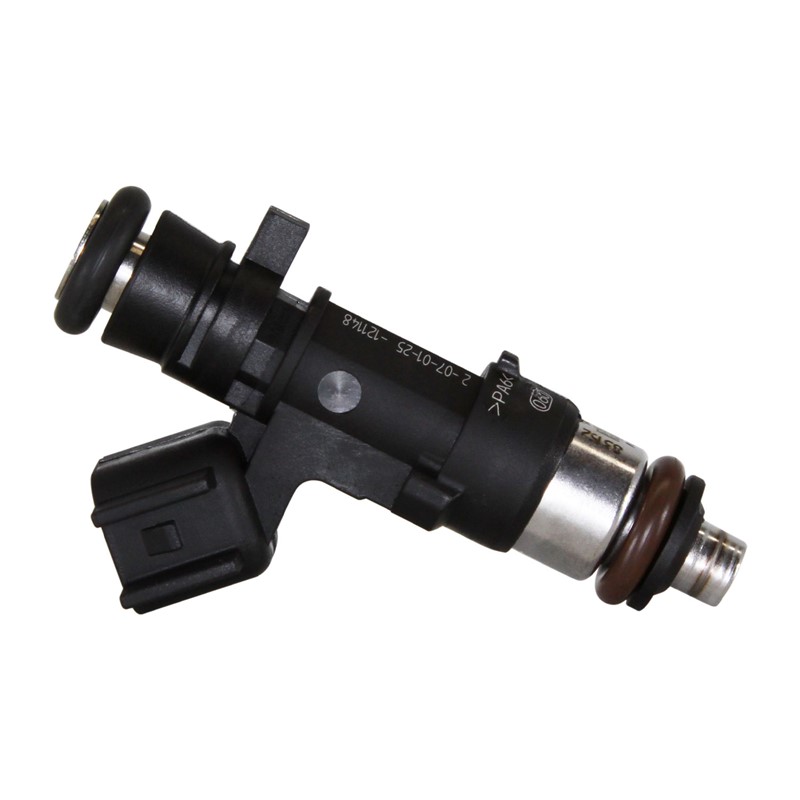

  • Bosch Fuel Injector, 35 lb/hr, 363 cc/min, USCAR EV 14S

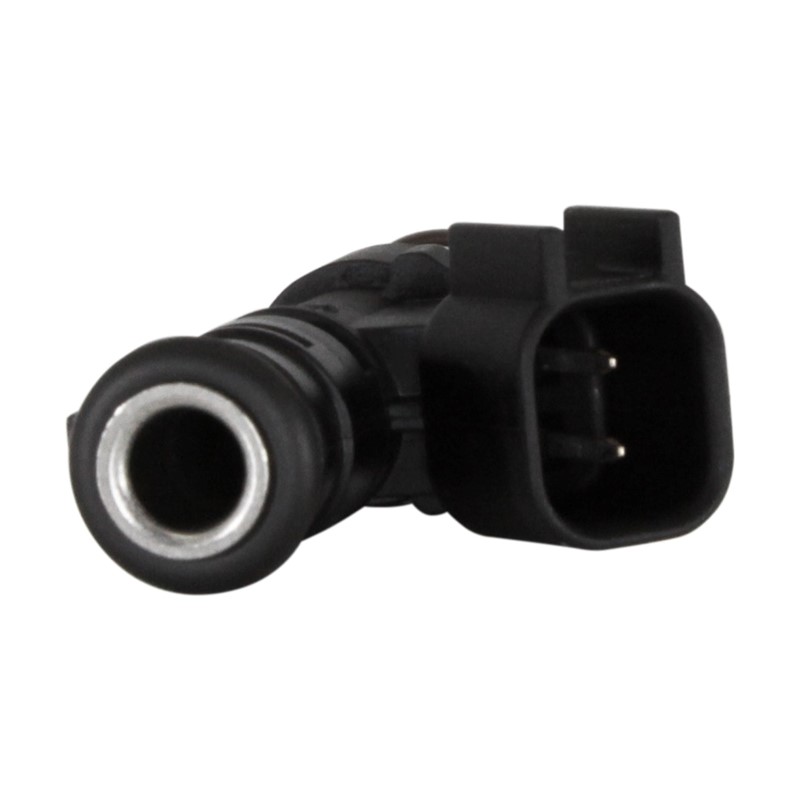

  • Bosch Fuel Injector, 35 lb/hr, 363 cc/min, USCAR EV 14S Image 1

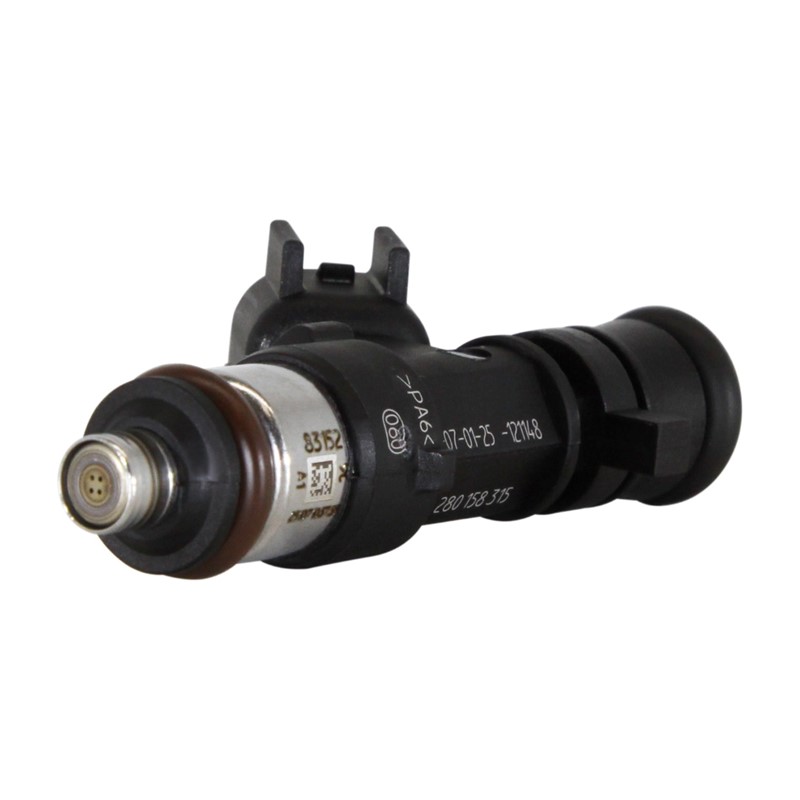

  • Bosch Fuel Injector, 35 lb/hr, 363 cc/min, USCAR EV 14S Image 2
New ArrivalOn SaleFeatured

Bosch Fuel Injector, 35 lb/hr, 363 cc/min, USCAR EV 14S

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 35 lb/hr, 261 g/min, 363 cc/min @ 300 kPa
  • EV 14S (Standard) Body Type
  • 20° Split-stream with dual cone spray (E-Type)
  • High-impedance, USCAR Electrical connection

Show More
Item #: 0280158315

$49.99

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 35 lb/hr (380cc)

Genuine Bosch Motorsport | Part #: 0 280 158 315

Body Type Standard (S)

Product Overview

The Bosch 0 280 158 315 is a high-performance EV 14 injector featuring the "Standard" (S) body geometry. This 49mm length injector is designed with a Dual Cone (Split Stream) spray pattern, making it ideal for multi-valve engines requiring precise fuel targeting.

  • Flow Capacity: Rated at 35 lb/hr / 381 cc/min (261 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~381 cc/min (N-Heptane) / ~363 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings (Black Upper / Brown Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
  • Electrical Connection: Features a standard USCAR / EV6 connector housing.
Spray Pattern: Type E (Dual Cone) Bosch E-Type Spray Pattern
Alpha (a): 20° (Split)
Gamma (?): 0° (Straight)
Delta (d): 90° (Rotation)
Connector Orientation: Spray Orientation Guide

*Use diagram to align connector (Delta) relative to the split spray plane.

Technical Specifications

Coil Resistance 12.0 Ohms (High-Z)
Connector Style USCAR / EV6
Body Length 48.65 mm (Standard)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
261 g/min
Industry Std (N-Heptane):
~381 cc/min
Gasoline Estimate:
~363 cc/min

Dimensions & Fitment

The 0280158315 uses the EV 14 S (Standard) body geometry. It features a 48.65mm O-ring to O-ring length.

Technical Drawing (Standard Body): Bosch EV14 Standard Dimensions
Variable Description Dimension
X Installation Length (O-Ring to O-Ring) 48.65 mm
Y Total Body Length ~64.00 mm
Family Size Comparison: Bosch EV14 Dimensions Family

*Diagram illustrates the EV14 family sizes. This product is the EV 14 S (Second from Right).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 261 ÷ 0.684 = 381.6 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 261 ÷ 0.720 = 362.5 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix. Flow matching is only available on specific pre-packaged sets (packs) when and if available. Purchasing multiple individual units does not guarantee a matched set.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
