Bosch Fuel Injector, 45 lb/hr, 471 cc/min, USCAR EV 14K

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 45 lb/hr, 339 g/min, 471 cc/min @ 300 kPa
  • EV 14K (Compact) Body Type
  • 13° Conical spray pattern (C-Type)
  • High-impedance, USCAR Electrical connection

Show More
Item #: 0280158187

$54.53

$61.84

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 45 lb/hr (471cc)

Genuine Bosch | Part #: 0 280 158 187

Body Type Compact (K)

Product Overview

The Bosch 0 280 158 187 is a high-performance EV 14 injector featuring the "Compact" (K) body geometry. This unit is designed as a Split Stream injector for multi-valve applications where targeting the intake valves is critical. It features a specific 10° Bent Spray Angle (Gamma), allowing for precise installation in optimized cylinder head geometries.

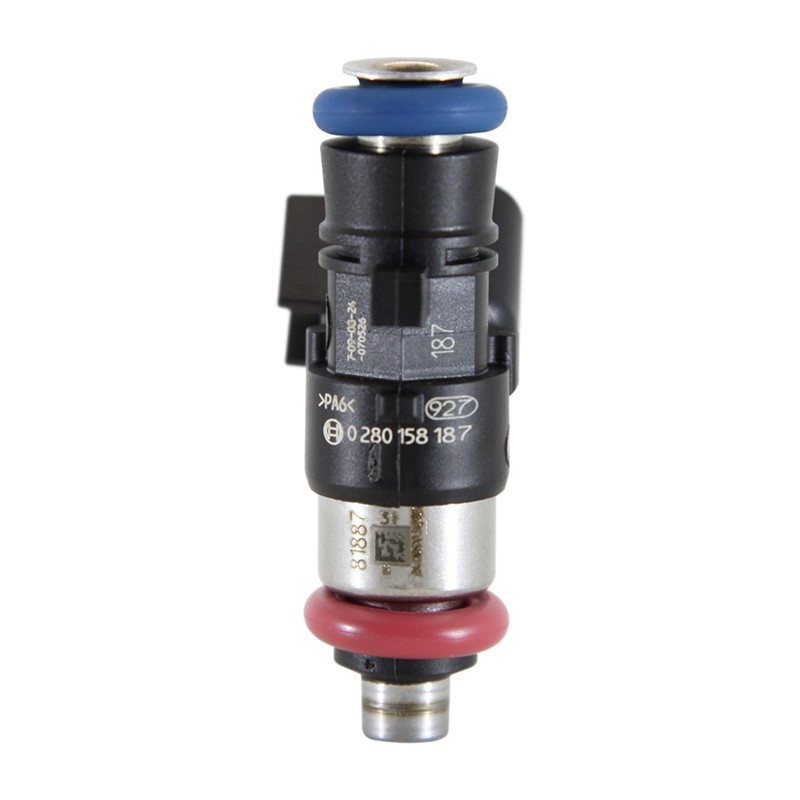

Verified Visual Check: This specific part number is identified by its O-ring color combination: Blue (Top) and Red (Bottom).
  • Flow Capacity: Rated at 45 lb/hr / 471 cc/min (339 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~495 cc/min (N-Heptane) / ~471 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue Upper / Red Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
  • Electrical Connection: Features a standard USCAR / EV6 connector housing.
Spray Pattern: Type E (Dual Cone) Bosch E-Type Spray Pattern
Alpha: Alpha 13° (Split Angle)
Gamma: Gamma 10° (Bent Angle)
Delta: Delta 270° (Rotation)
Connector Orientation: Spray Orientation Guide

*Connector is clocked 270° relative to the spray bend.

Technical Specifications

Coil Resistance10.8 Ohms (High-Z)
Connector StyleUSCAR / EV6
Body Length33.6 mm (Compact)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
339 g/min
Industry Std (N-Heptane):
~495 cc/min
Gasoline Estimate:
~471 cc/min

Dimensions & Fitment

The 0280158187 uses the EV 14 K (Compact) body geometry. It is the shortest standard EV14 length (33.6mm O-ring to O-ring).

Bosch EV14 Dimensions Family

*This unit is the Compact length (2nd from Left).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 339 ÷ 0.684 = 495.6 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 339 ÷ 0.720 = 470.8 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.

*Data Integrity Disclaimer: This specification data is derived from official Bosch technical documentation. O-ring colors and specific spray rotation details reflect user physical verification of current inventory.
