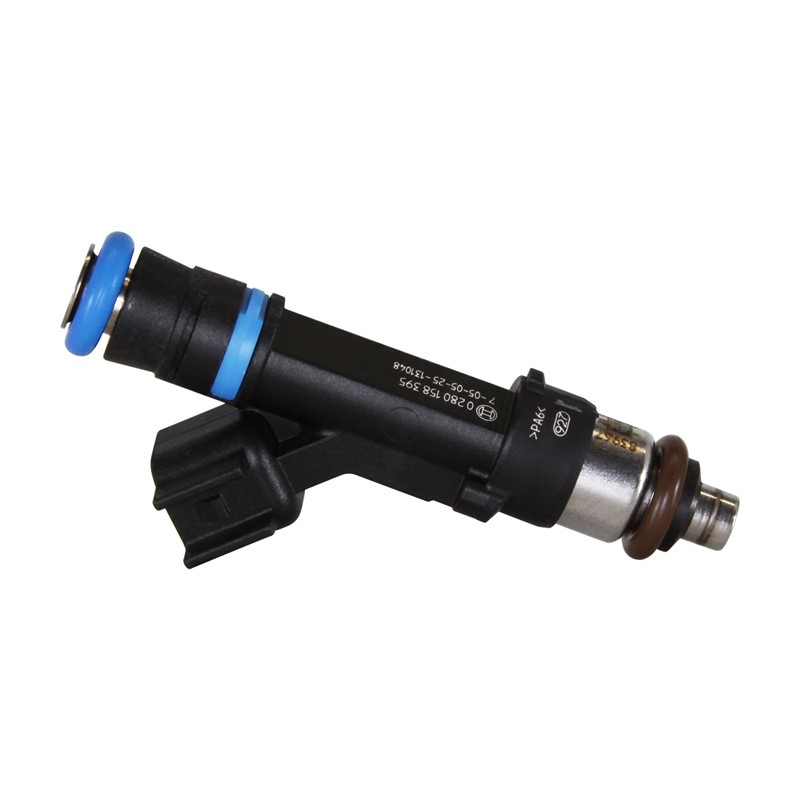

  • Bosch Fuel Injector, 58 lb/hr, 610 cc/min, USCAR EV 14L

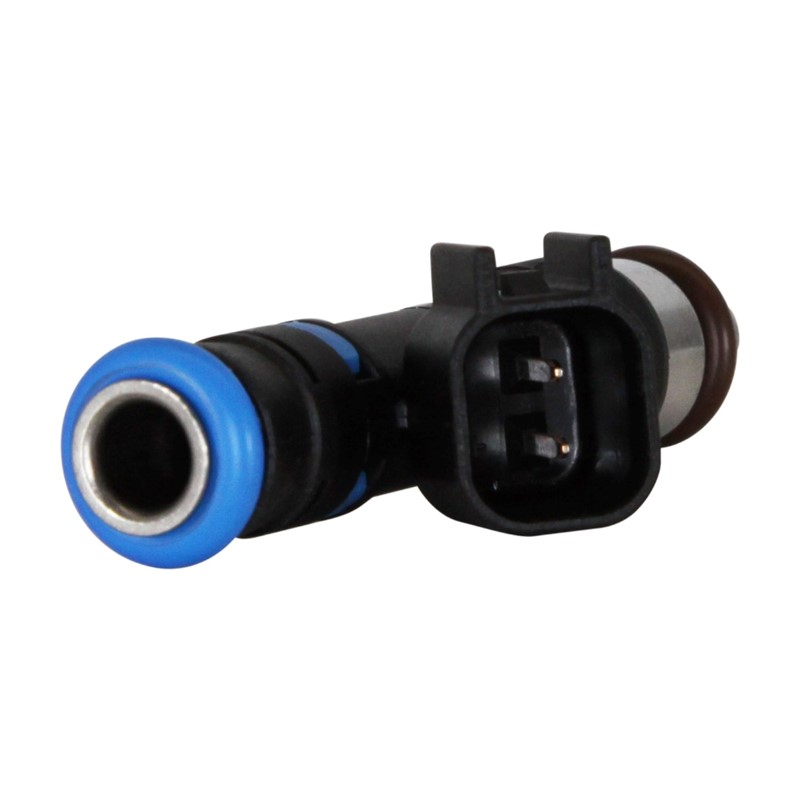

  • Bosch Fuel Injector, 58 lb/hr, 610 cc/min, USCAR EV 14L Image 1

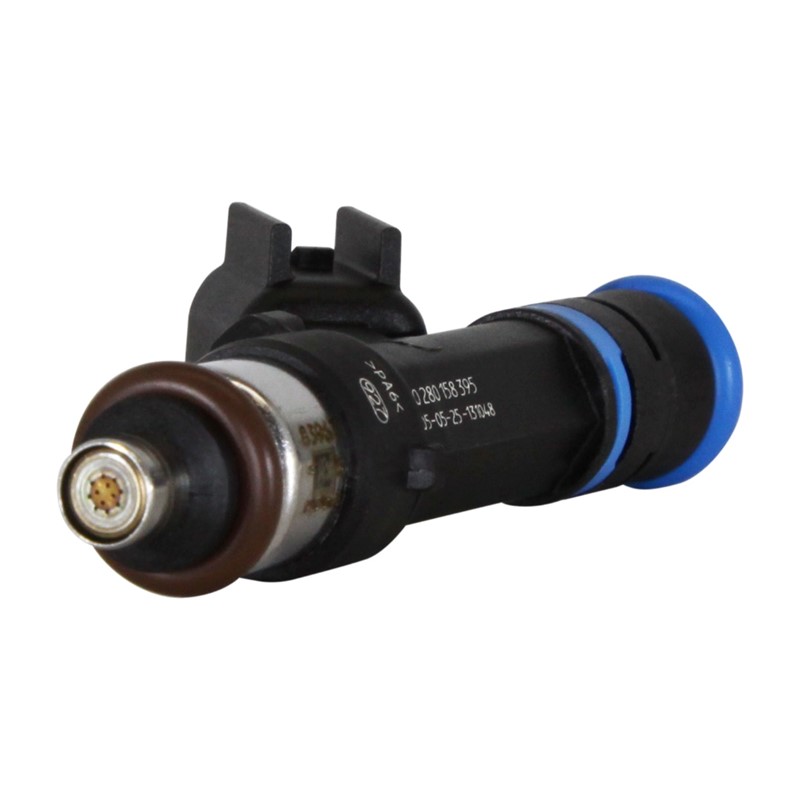

  • Bosch Fuel Injector, 58 lb/hr, 610 cc/min, USCAR EV 14L Image 2
New ArrivalOn SaleFeatured

Bosch Fuel Injector, 58 lb/hr, 610 cc/min, USCAR EV 14L

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 58 lb/hr, 439 g/min, 610 cc/min @ 300 kPa
  • EV 14L (Long) Body Type
  • 20° Split-stream with 18° dual cone spray (E-Type)
  • High-impedance, USCAR Electrical connection

Show More
Item #: 0280158395

$48.01

$54.99

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 58 lb/hr (610cc)

Genuine Bosch | Part #: 0 280 158 395

Body Type Long (L)

Product Overview

The Bosch 0 280 158 395 is a high-performance EV 14 injector featuring the "Long" (L) body geometry (60.65mm). Commonly utilized in high-horsepower street and racing builds, this unit utilizes a Type E (Dual Cone) spray pattern to optimize fuel atomization in 4-valve cylinder heads, ensuring efficient combustion and improved throttle response.

Verified Configuration Note: This unit is verified to have Blue (Upper) and Brown (Lower) O-rings.
  • Flow Capacity: Rated at 58 lb/hr / 610 cc/min (439 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~642 cc/min (N-Heptane) / ~610 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue/Brown) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
  • Electrical Connection: Features a modern USCAR / EV6 connector housing.
Spray Pattern: Type E (Dual Cone) Bosch E-Type Spray Pattern
Alpha: Alpha 20° (Split Angle)
Gamma: Gamma 0° (Bent Angle)
Delta: Delta 0° (Rotation)
Connector Orientation: Spray Orientation Guide

*Connector is clocked 0° relative to the spray split.

Technical Specifications

Coil Resistance12.0 Ohms (High-Z)
Connector StyleUSCAR / EV6
Body Length60.65 mm (Long)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
439 g/min
Industry Std (N-Heptane):
~642 cc/min
Gasoline Estimate:
~610 cc/min

Dimensions & Fitment

The 0280158395 uses the EV 14 L (Long) body geometry. Please verify fitment using the diagrams and table below.

Bosch EV14 Long Dimensions
Bosch EV14 Dimensions Family

*This unit is the Long length (4th from Left).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 439 ÷ 0.684 = 641.8 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 439 ÷ 0.720 = 609.7 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.

*Data Integrity Disclaimer: This specification data is derived from official Bosch technical documentation. O-ring colors and specific spray data reflect user physical verification of current inventory.
