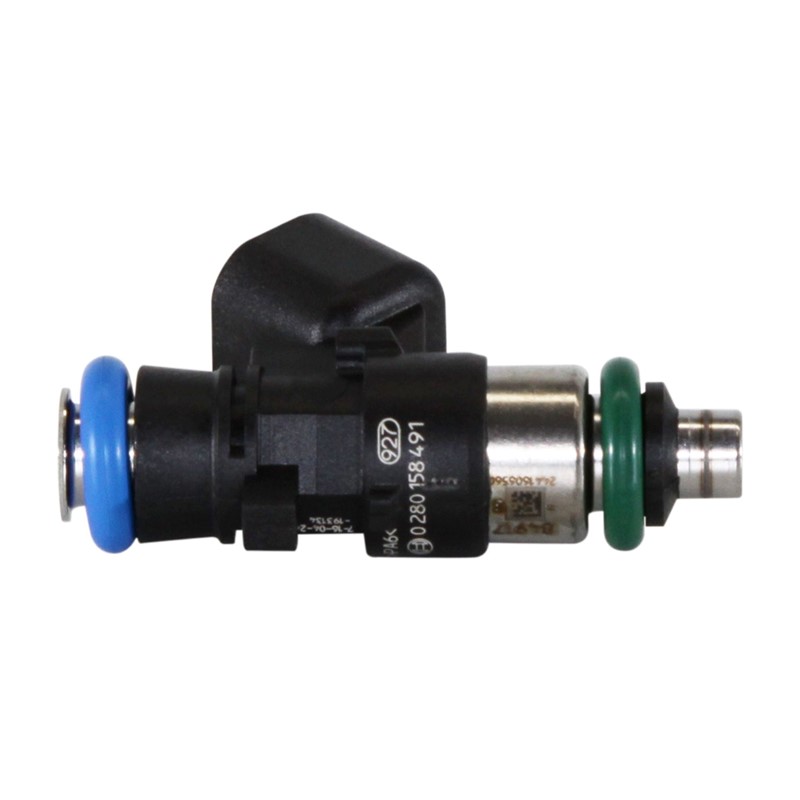

  • Bosch Fuel Injector, 66 lb/hr, 695 cc/min, USCAR EV 14K

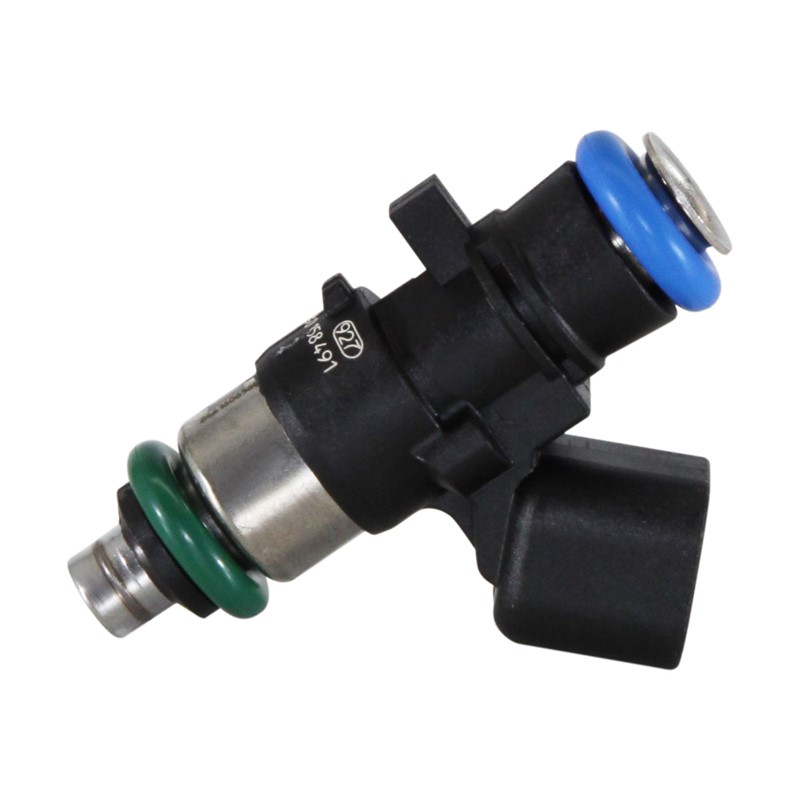

  • Bosch Fuel Injector, 66 lb/hr, 695 cc/min, USCAR EV 14K Image 1

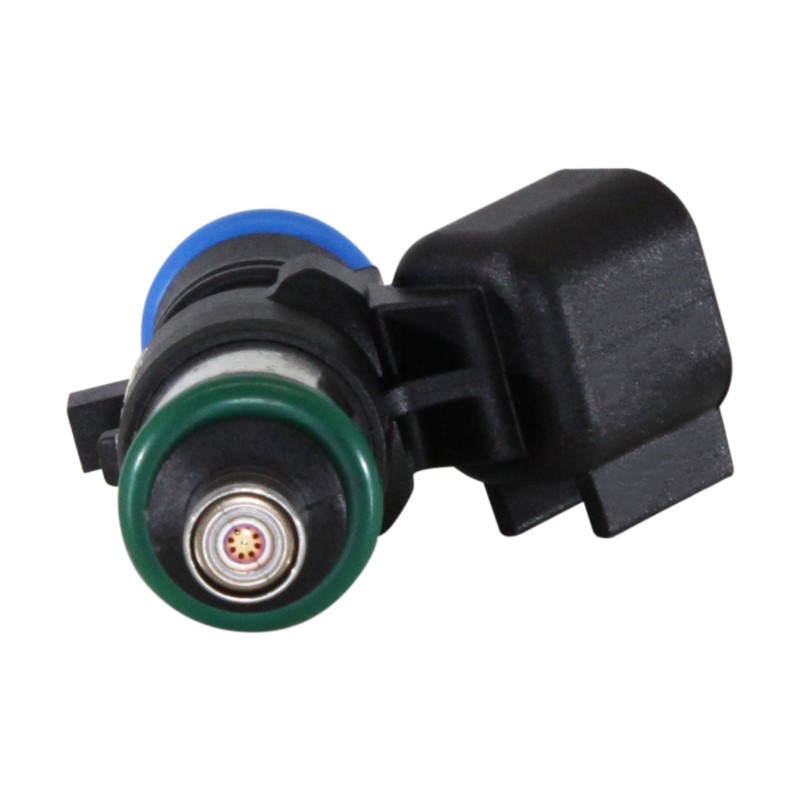

  • Bosch Fuel Injector, 66 lb/hr, 695 cc/min, USCAR EV 14K Image 2

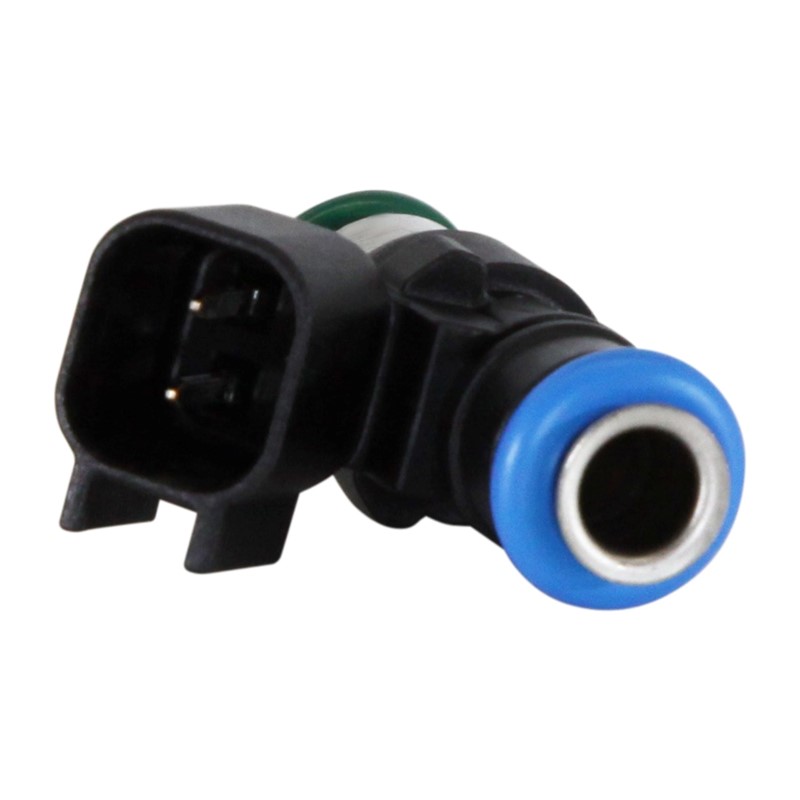

  • Bosch Fuel Injector, 66 lb/hr, 695 cc/min, USCAR EV 14K Image 3
New ArrivalOn SaleFeatured

Bosch Fuel Injector, 66 lb/hr, 695 cc/min, USCAR EV 14K

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 66 lb/hr, 500 g/min, 695 cc/min @ 300 kPa
  • EV 14K (Compact) Body Type
  • 26° Conical spray pattern (C-Type)
  • High-impedance, USCAR Electrical connection

Show More
Item #: 0280158491

$46.35

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 66 lb/hr (730cc)

Genuine Bosch Motorsport | Part #: 0 280 158 491

Body Type Compact (K)

Product Overview

The Bosch 0 280 158 491 is a high-performance EV 14 injector featuring the "Compact" (K) body geometry. This 34mm short-body injector is designed for modern applications with limited fuel rail clearance.

  • Mass Flow Rate: 500 g/min (Official Bosch Specification).
  • Volumetric Flow: ~730 cc/min (N-Heptane) / ~695 cc/min (Gasoline). *See Tech Note
  • Fuel Compatibility: Viton O-rings (Blue Upper / Green Lower) and stainless internals. Compatible with E85, Methanol, and Gasoline.
Spray Pattern: Type C (Conical) Bosch C-Type Spray Pattern

Alpha (a): 26°
Gamma (?): 0° (Straight)

Technical Specifications

Resistance 12.0 Ohms (High-Z)
Connector USCAR / EV6
Body Length 33.6 mm (Compact)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
500 g/min
Industry Std (N-Heptane):
~730 cc/min
Gasoline Estimate:
~695 cc/min

Dimensions & Fitment

Bosch EV14 Dimensions Family

*Diagram illustrates the EV14 family sizes. This product is the EV 14 K (Second from Left).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 500 ÷ 0.684 = 730.9 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 500 ÷ 0.720 = 694.4 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix. Flow matching is only available on specific pre-packaged sets (packs).
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
