Bosch Fuel Injector, 66 lb/hr, 695 cc/min, USCAR EV 14KT
Quick Overview
- Genuine Bosch High-Performance Fuel Injector
- 66 lb/hr, 500 g/min, 695 cc/min @ 300 kPa
- EV 14KT (Compact with extended tip) Body Type
- 26° Conical spray pattern (C-Type)

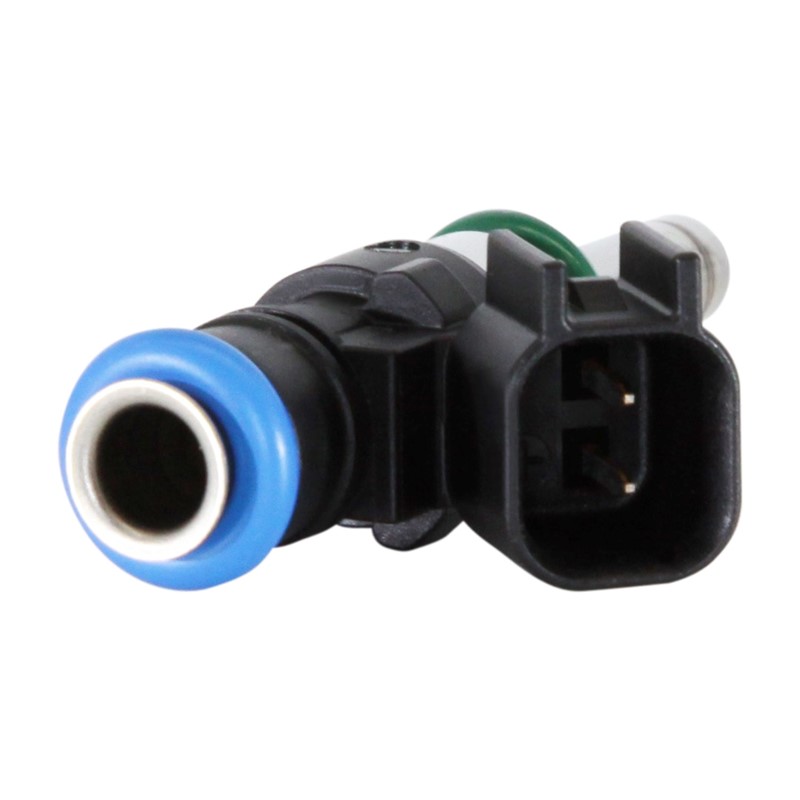

- High-impedance, USCAR Electrical connection
Show More
$46.61
$79.29
per EACH (USD)Bosch EV14 Fuel Injector - 66 lb/hr (695cc)

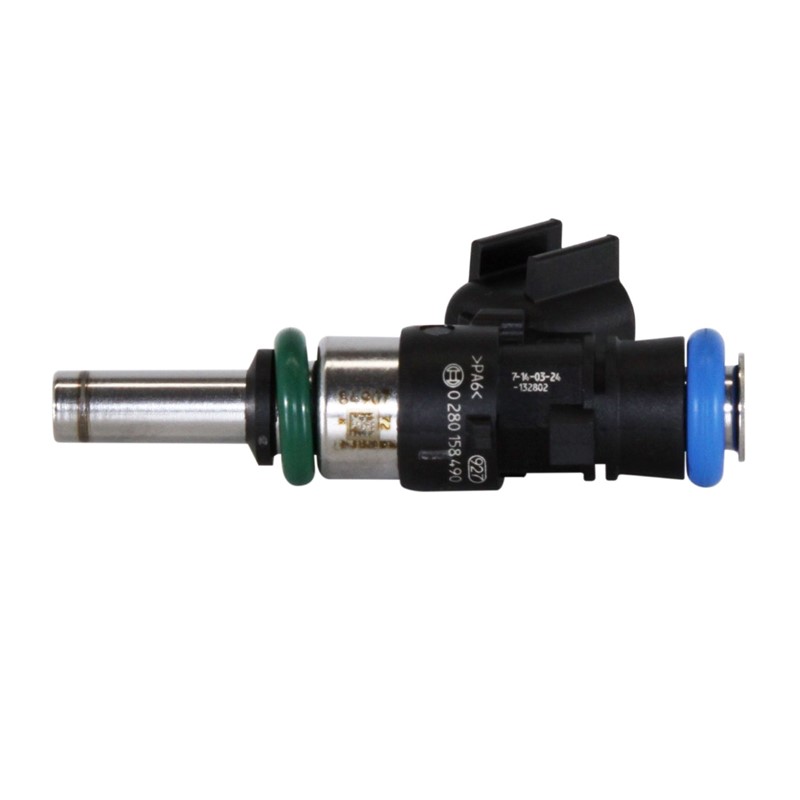

Genuine Bosch Motorsport | Part #: 0 280 158 490
Product Overview

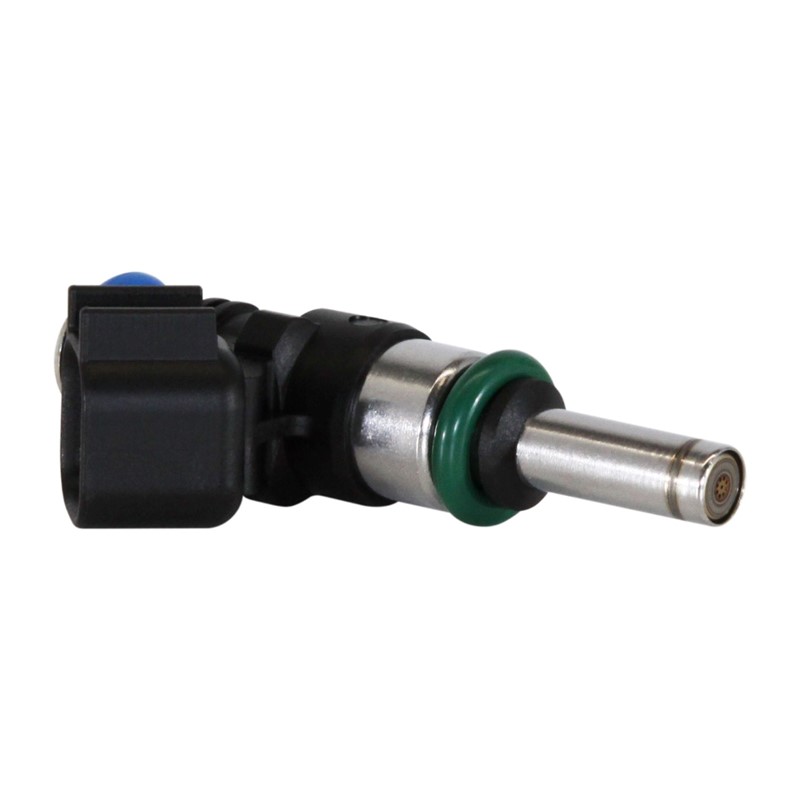

The Bosch 0 280 158 490 is a high-performance EV 14 injector featuring the "Compact Extended Tip" (KT) body geometry. This injector shares the standard 33.6mm installation length (O-ring to O-ring) of other Compact injectors but features a distinct Extended Tip nozzle. This design allows the spray point to sit deeper in the intake tract, which is critical for manifolds where the injector mounting boss is recessed or where the spray must clear specific port obstructions.
- Flow Capacity: Rated at 66 lb/hr / 695 cc/min (500 g/min) at 300 kPa (43.5 PSI).
- Volumetric Flow: ~731 cc/min (N-Heptane) / ~695 cc/min (Gasoline). *See Tech Note

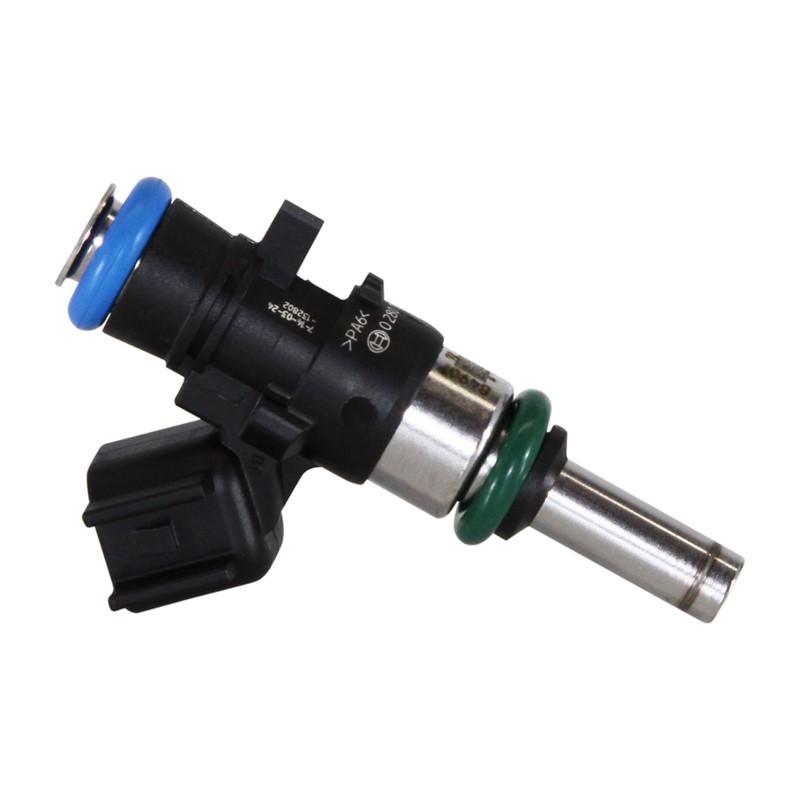

- Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue Upper / Green Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
- Electrical Connection: Features a standard USCAR / EV6 connector housing.
Alpha (a): 26° (Targeted Cone)
Gamma (?): 0° (Straight)

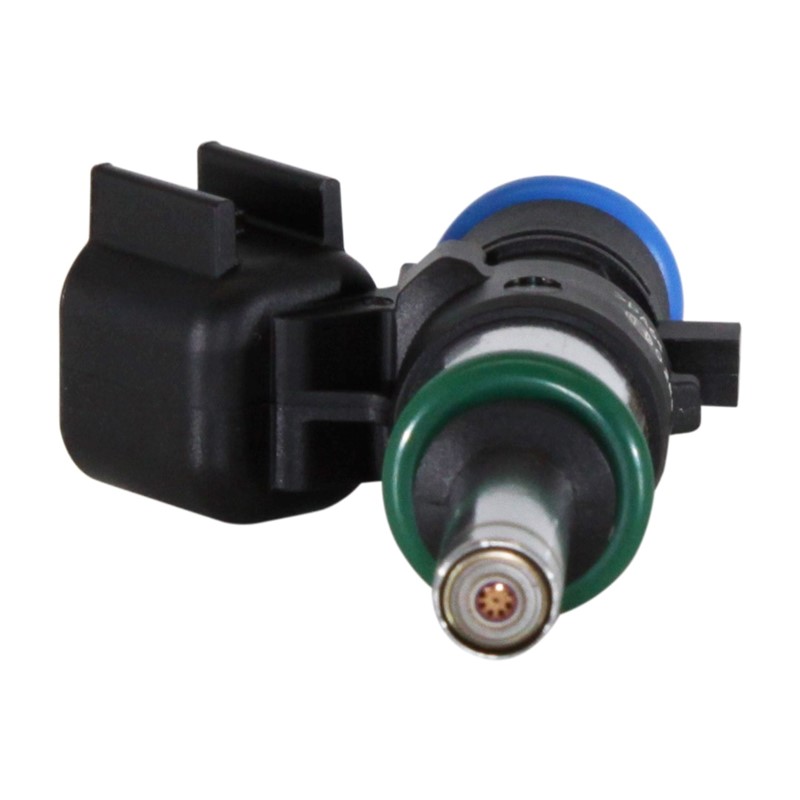

Single cone spray with Extended Tip nozzle.
Technical Specifications
500 g/min
~731 cc/min
~695 cc/min
Dimensions & Fitment
The 0280158490 uses the EV 14 KT (Compact Extended Tip) body geometry. It features a standard compact body length (33.6mm) but with an elongated nozzle tip for specific cylinder head requirements.
*Diagram illustrates the EV14 family sizes. This product is the EV 14 KT (First on Left).
Technical Note: Flow Rating & Fluids
Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:
Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
- N-Heptane (0.684 g/cc): 500 ÷ 0.684 = 730.9 cc/min (Industry Standard Rating)
- Gasoline (~0.720 g/cc): 500 ÷ 0.720 = 694.4 cc/min (Real World Estimate)
- Factory new Genuine Bosch High-Performance Fuel Injector.
- Factory installed o-rings top and bottom.
- Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
- Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix. Flow matching is only available on specific pre-packaged sets (packs) when and if available. Purchasing multiple individual units does not guarantee a matched set.
- Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.
*Data Integrity Disclaimer: While we strive for absolute accuracy, some specifications for this part number (such as specific spray angles or OEM-specific O-ring colors) are derived from industry cross-reference data where official Bosch Motorsport documentation is unavailable. We strongly recommend that your tuner verifies all flow and latency (dead-time) data prior to final calibration.
