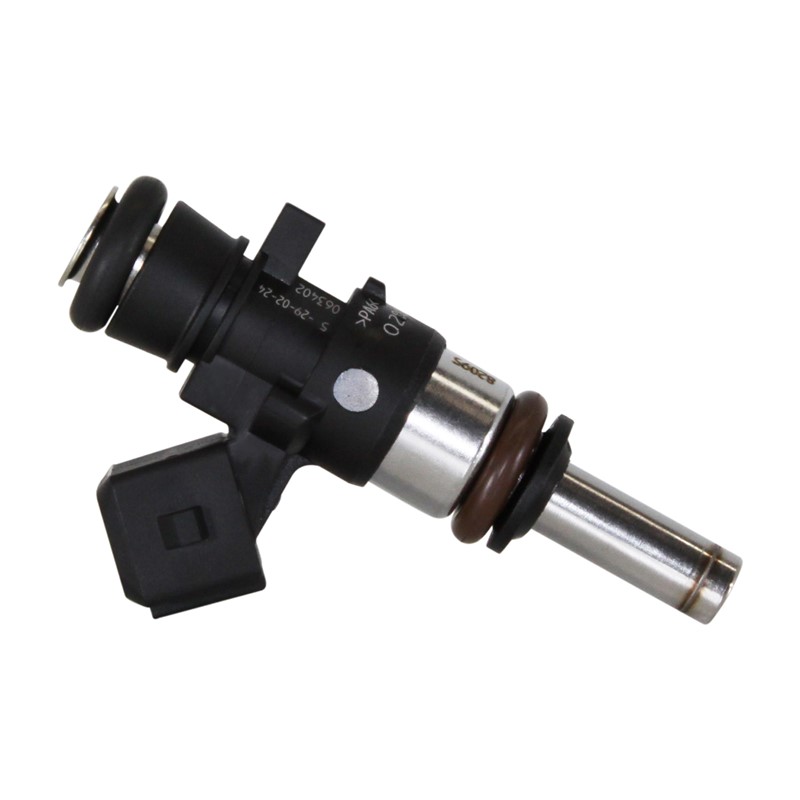

  • Bosch Fuel Injector, 79 lb/hr, 834 cc/min, Jetronic EV 14KT

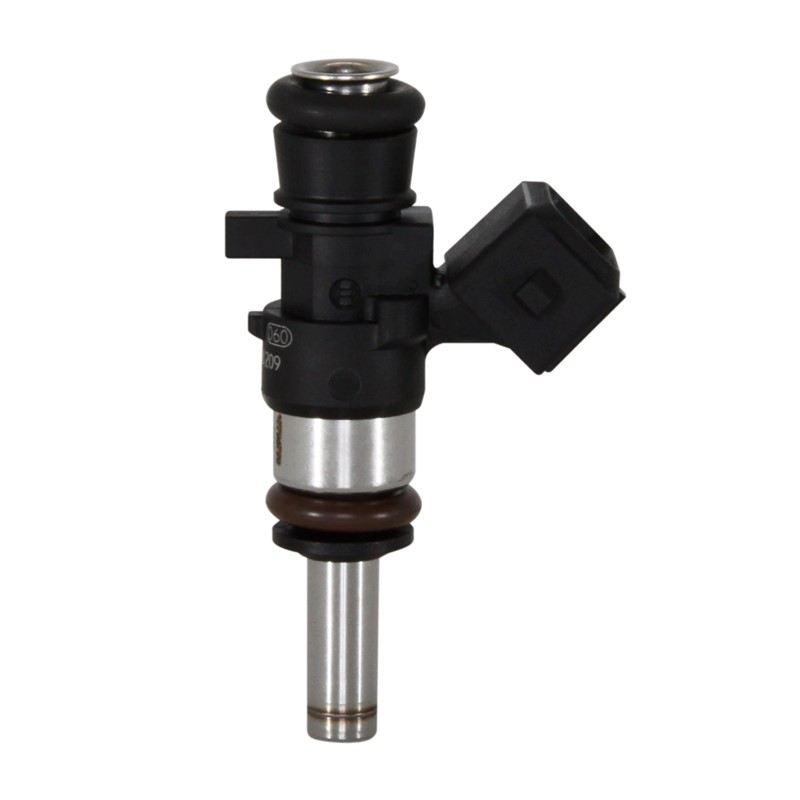

  • Bosch Fuel Injector, 79 lb/hr, 834 cc/min, Jetronic EV 14KT Image 1

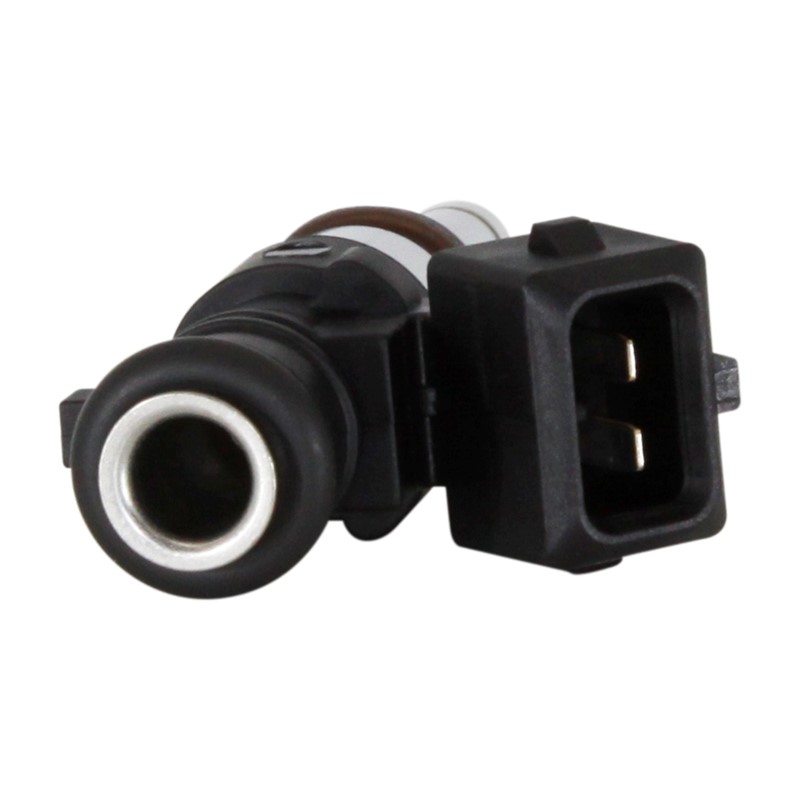

  • Bosch Fuel Injector, 79 lb/hr, 834 cc/min, Jetronic EV 14KT Image 2
New ArrivalOn SaleFeatured

Bosch Fuel Injector, 79 lb/hr, 834 cc/min, Jetronic EV 14KT

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 79 lb/hr, 600 g/min, 834 cc/min @ 300 kPa
  • EV 14KT (Compact with extended tip) Body Type
  • 45° Conical spray pattern (C-Type)
  • High-impedance, Jetronic/Minitimer Electrical connection

Show More
Item #: 0280158209

$49.65

$59.99

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 79 lb/hr (834cc)

Genuine Bosch Motorsport | Part #: 0 280 158 209

Body Type Compact Ext. Tip (KT)

Product Overview

The Bosch 0 280 158 209 is a high-flow Bosch Motorsport injector. It combines an ~870cc valve with the "Compact Extended Tip" (KT) body geometry. This unit is a popular choice for high-horsepower builds requiring a compact injector body where an extended nozzle is needed to reach the airstream for optimal fuel atomization.

Verified Configuration Note: This unit is verified to have Black (Upper) and Brown (Lower) O-rings.
  • Flow Capacity: Rated at 79 lb/hr / 834 cc/min (600 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~877 cc/min (N-Heptane) / ~834 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings (Black Upper / Brown Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
  • Electrical Connection: Features a legacy Jetronic / EV1 connector housing.
Spray Pattern: Type C (Conical) Bosch C-Type Spray Pattern
Alpha: Alpha 45° (Conical Angle)
Gamma: Gamma 0° (Bent Angle)
Delta: Delta 0° (Rotation)
Connector Orientation: Spray Orientation Guide

Technical Specifications

Coil Resistance12.0 Ohms (High-Z)
Connector StyleJetronic / EV1
Body Length33.6 mm (Compact KT)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
600 g/min
Industry Std (N-Heptane):
~877 cc/min
Gasoline Estimate:
~834 cc/min

Dimensions & Fitment

The 0280158209 uses the EV 14 KT (Compact Extended Tip) body geometry. It features a standard compact body length (33.6mm) but with an elongated nozzle tip for deeper port reach.

Bosch EV14 Dimensions Family

*Diagram illustrates the EV14 family sizes. This product is the EV 14 KT (First on Left).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 600 ÷ 0.684 = 877.2 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 600 ÷ 0.720 = 833.3 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.

*Data Integrity Disclaimer: This specification data is derived from official Bosch Motorsport technical documents. We strongly recommend that your tuner verifies all flow and latency (dead-time) data prior to final calibration.
