Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S Image 1Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S Image 2
  • Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S
  • Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S Image 1
  • Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S Image 2
New ArrivalOn SaleFeatured

Bosch Fuel Injector, 90 lb/hr, 945 cc/min, USCAR EV 14S

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 90 lb/hr, 680 g/min, 945 cc/min @ 300 kPa
  • EV 14S (Standard) Body Type
  • 25° Conical spray pattern (C-Type)
  • High-impedance, USCAR Electrical connection

Show More
Item #: 028015845T

$50.42

$65.64

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 90 lb/hr (945cc)

Genuine Bosch | Part #: 0 280 158 45T

Body Type Standard (S)

Product Overview

The Bosch 0 280 158 45T is a high-performance EV 14 injector featuring the "Standard" (S) body geometry (48.65mm). Delivering a massive 90 lb/hr flow rate, this unit is engineered for high-horsepower forced induction and racing applications. It utilizes a Type C (Single Cone) spray pattern with a 25-degree Alpha Angle, providing excellent atomization for large-volume fuel delivery.

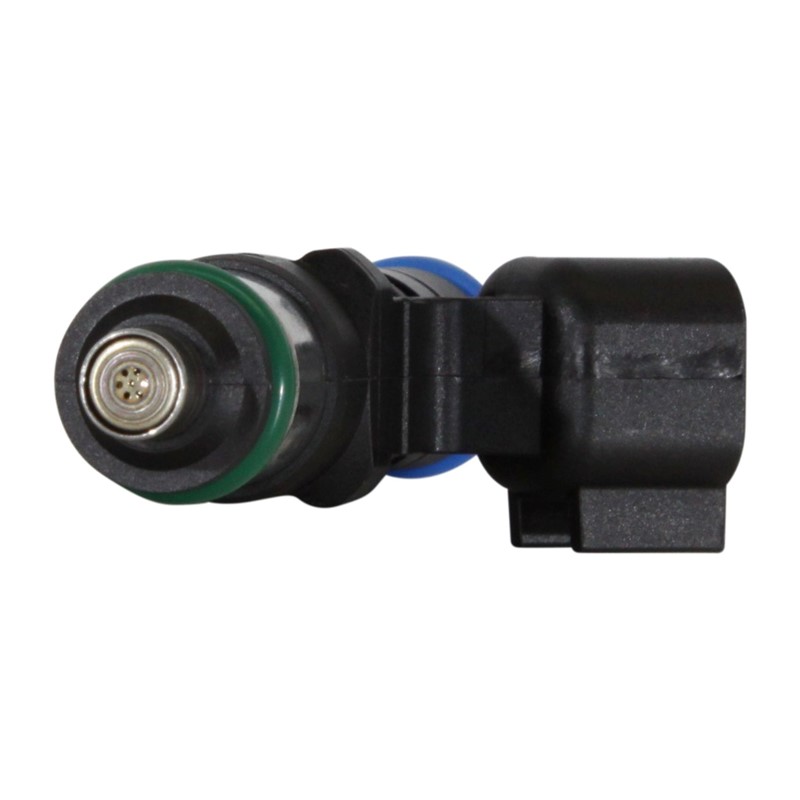

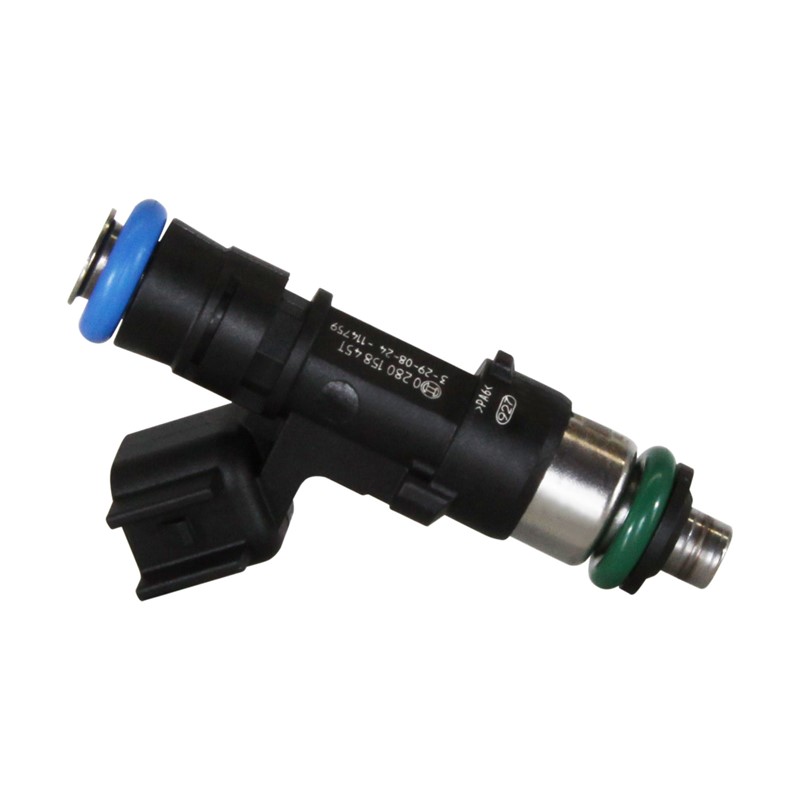

Verified Visual Check: This specific part number is identified by its O-ring color combination: Blue (Top) and Green (Bottom).
  • Flow Capacity: Rated at 90 lb/hr / 945 cc/min (680 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~994 cc/min (N-Heptane) / ~945 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings (Blue Upper / Green Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.

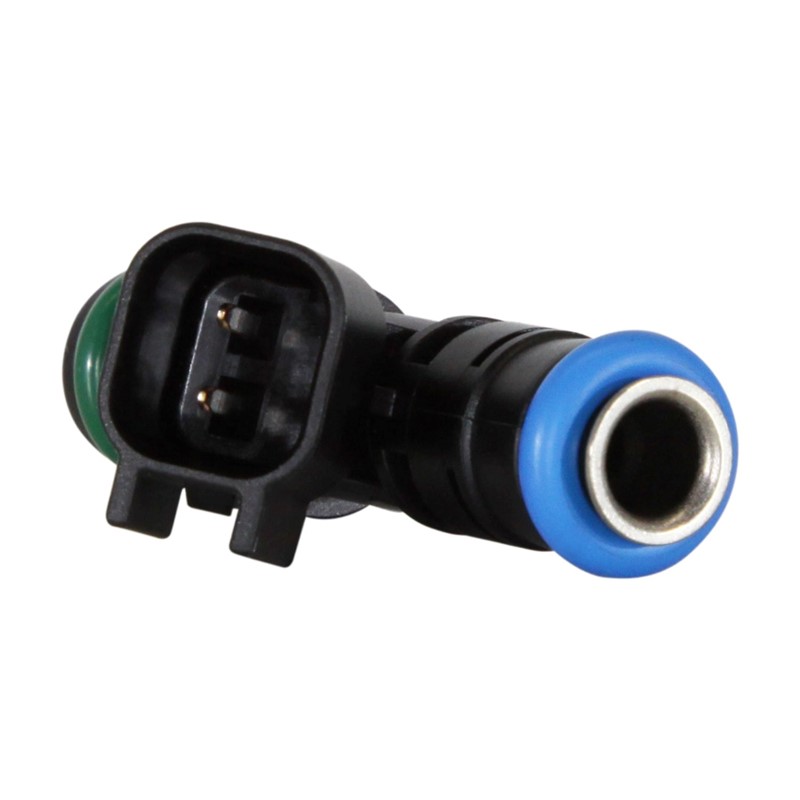

  • Electrical Connection: Features a modern USCAR / EV6 connector housing.
Spray Pattern: Type C (Single Cone) Bosch C-Type Spray Pattern
Alpha: Alpha 25° (Cone Angle)
Gamma: Gamma 0° (Bent Angle)
Delta: Delta 0° (Rotation)
Connector Orientation: Spray Orientation Guide

Technical Specifications

Coil Resistance12.0 Ohms (High-Z)
Connector StyleUSCAR / EV6
Body Length48.65 mm (Standard)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
680 g/min
Industry Std (N-Heptane):
~994 cc/min
Gasoline Estimate:
~945 cc/min

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 680 ÷ 0.684 = 994.2 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 680 ÷ 0.720 = 944.4 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.

*Data Integrity Disclaimer: This specification data is derived from official Bosch technical documentation. O-ring colors reflect user physical verification of current inventory. We strongly recommend that your tuner verifies all flow and latency data prior to final calibration.
