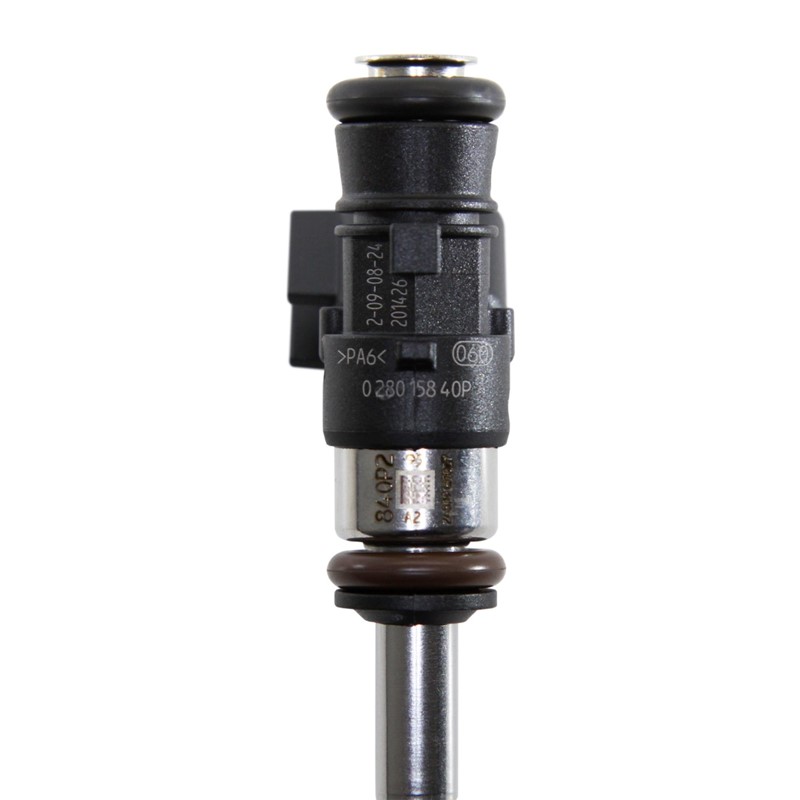

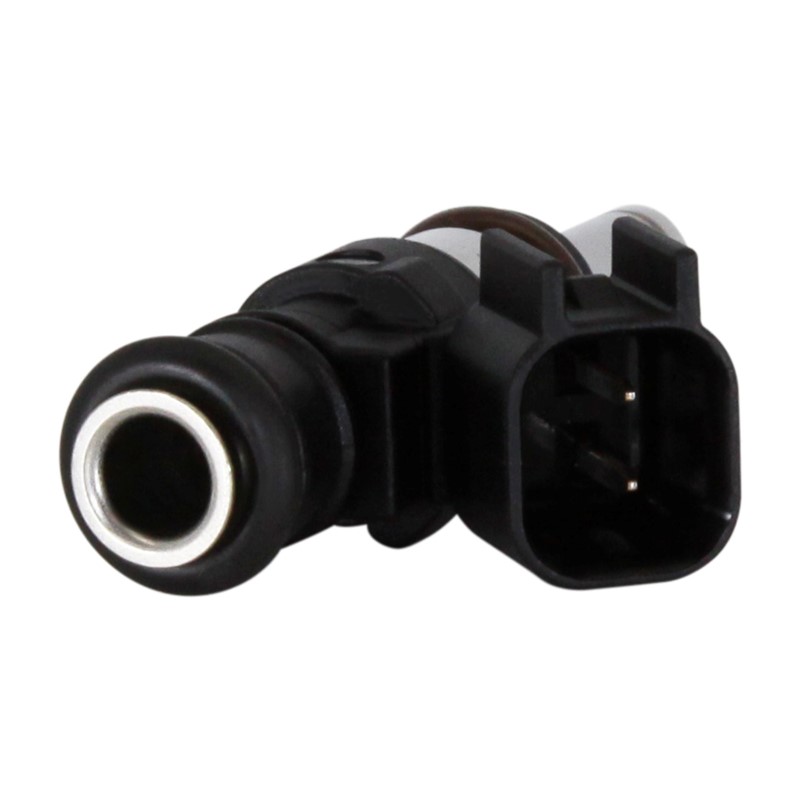

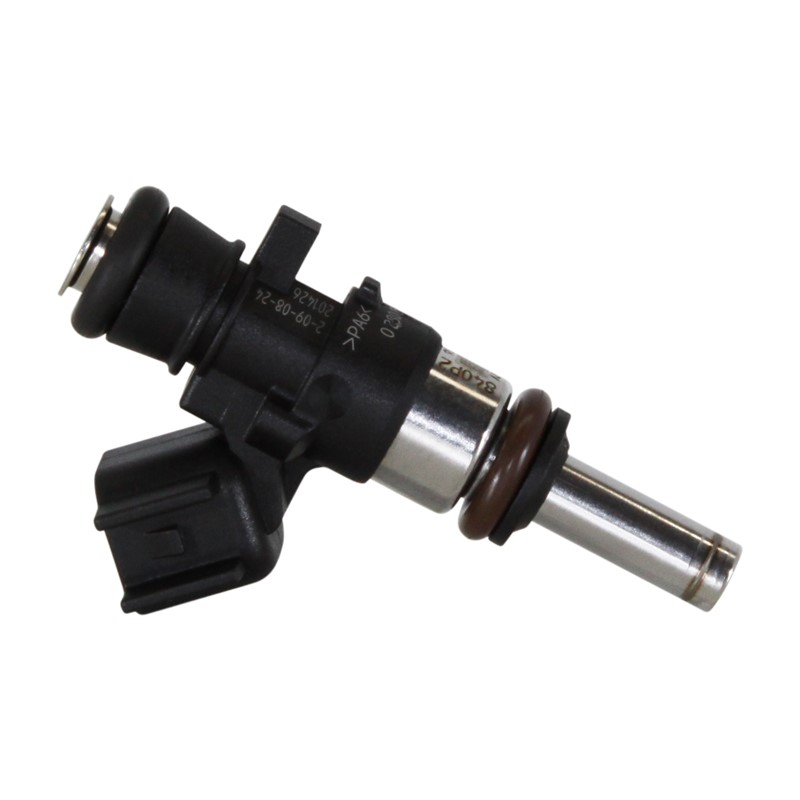

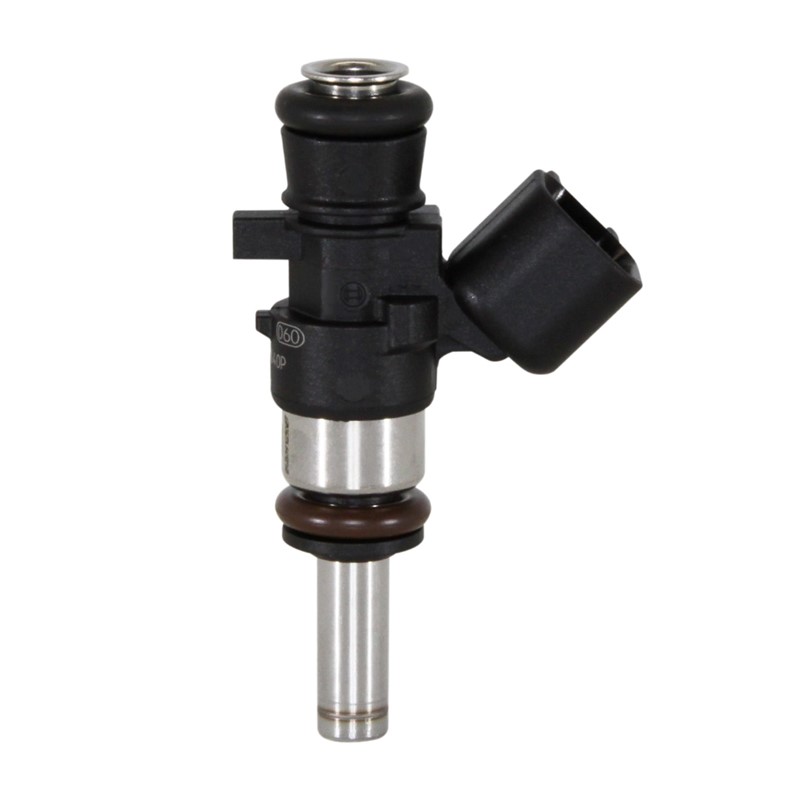

Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Image 1Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Image 2Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Image 3
  • Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT
  • Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Image 1
  • Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Image 2
  • Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT Image 3
New ArrivalOn SaleFeatured

Bosch Fuel Injector, 98 lb/hr, 1029 cc/min, USCAR EV 14KT

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector
  • 98 lb/hr, 740 g/min, 1029 cc/min @ 300 kPa
  • EV 14KT (Compact with extended tip) Body Type
  • Conical spray pattern (C-Type)
  • High-impedance, USCAR Electrical connection

Show More
Item #: 028015840P

$48.42

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 98 lb/hr (1029cc)

Genuine Bosch Motorsport | Part #: 0 280 158 040

Body Type Compact Ext. Tip (KT)

Product Overview

The Bosch 0 280 158 040 (often referred to as the 040P) is a high-performance **Bosch Motorsport** injector. It features the **"Compact Extended Tip" (KT)** body geometry, combining a high-flow valve with an elongated nozzle. This configuration is ideal for applications requiring the injector to reach deep into the intake airstream to optimize fuel atomization and port wall wetting.

Verified Configuration Note: This unit is verified to have Black (Upper) and Brown (Lower) O-rings.
  • Flow Capacity: Rated at 98 lb/hr / 1029 cc/min (741 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~1083 cc/min (N-Heptane) / ~1029 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
  • Electrical Connection: Features a modern USCAR / EV6 connector housing.
Spray Pattern: Type C (Conical) Bosch C-Type Spray Pattern
Alpha: Alpha 30° (Cone Angle)
Gamma: Gamma 0° (Bent Angle)
Delta: Delta 0° (Rotation)
Connector Orientation: Spray Orientation Guide

Technical Specifications

Coil Resistance12.0 Ohms (High-Z)
Connector StyleUSCAR / EV6
Body Length33.6 mm (Compact KT)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
741 g/min
Industry Std (N-Heptane):
~1083 cc/min
Gasoline Estimate:
~1029 cc/min

Dimensions & Fitment

The 0280158040 uses the EV 14 KT (Compact Extended Tip) body geometry. Please verify fitment using the diagrams below.

Bosch EV14 Dimensions Family

*This unit is the Compact Extended Tip length (1st from Left).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 741 ÷ 0.684 = 1083.3 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 741 ÷ 0.720 = 1029.2 cc/min (Real World Estimate)
  • Factory new Genuine Bosch Motorsport Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.

*Data Integrity Disclaimer: This specification data is derived from official Bosch Motorsport documentation. O-ring colors reflect user physical verification of current inventory. We strongly recommend tuner verification of all flow and latency data.
