Fuel Injector, 35 lb/hr, EV14KE US Fuel Injector, 35 lb/hr, EV14KE US Image 1Fuel Injector, 35 lb/hr, EV14KE US Image 2

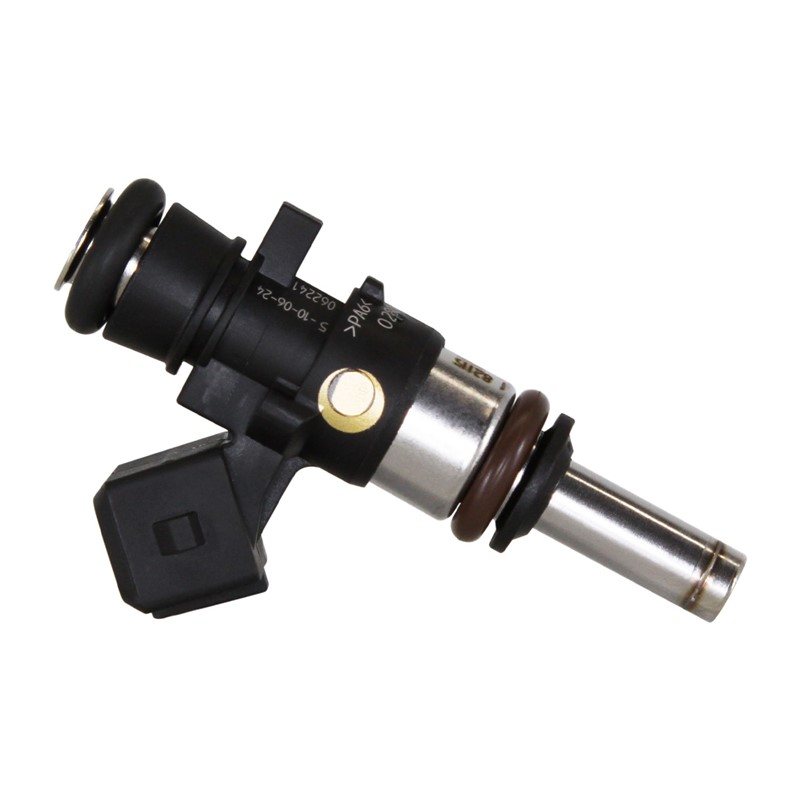

  • Fuel Injector, 35 lb/hr, EV14KE US

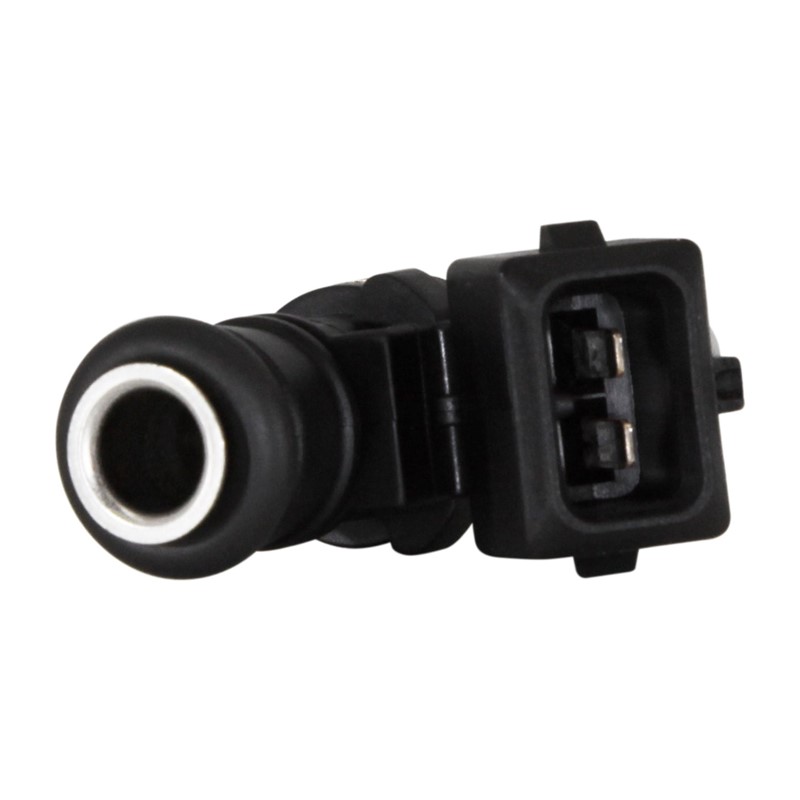

  • Fuel Injector, 35 lb/hr, EV14KE US Image 1

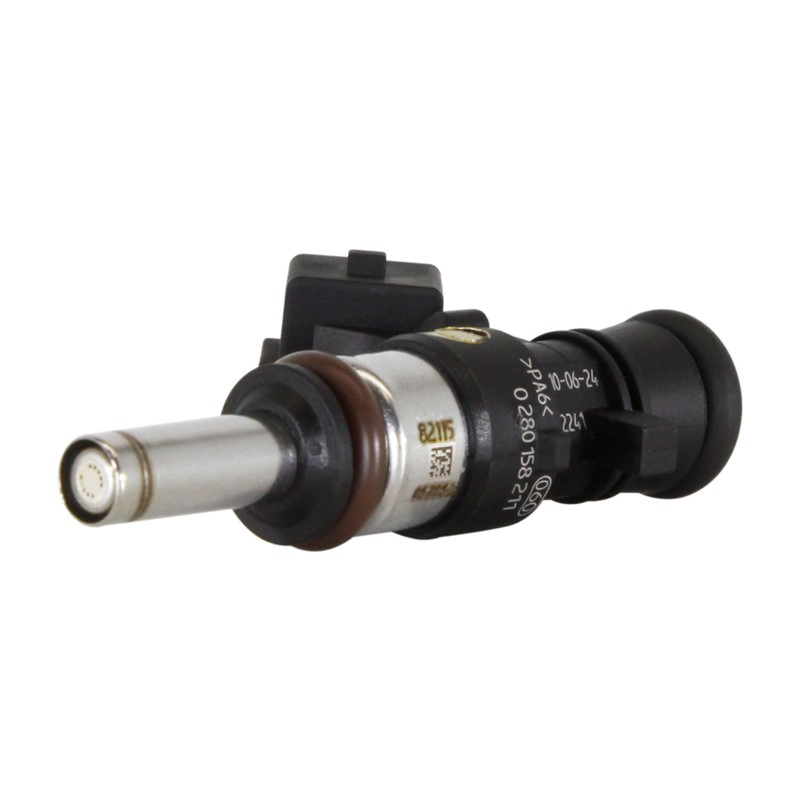

  • Fuel Injector, 35 lb/hr, EV14KE US Image 2

Fuel Injector, 35 lb/hr, EV14KE US

Quick Overview

  • Genuine Bosch High-Performance Fuel Injector.
  • 46 lb/hr, 339 g/min, 485 cc/min @ 300 kPa.
  • EV 14KE (Compact Extended Tip) Body Type.
  • Dual Cone spray pattern (E-Type).
  • High-impedance, Jetronic / EV1 Electrical connection.

Show More
Item #: 0280158211

$44.90

$74.99

per EACH (USD)
This is an obsolete Item


 In Stock & Ready to Ship

Bosch EV14 Fuel Injector - 35 lb/hr (363cc)

Genuine Bosch Motorsport | Part #: 0 280 158 230

Body Type Compact (K)

Product Overview

The Bosch 0 280 158 230 is a specialized high-performance EV 14 injector. It combines the modern "Compact" (K) body geometry with a legacy Jetronic / Minitimer (EV1) connector. This unique configuration makes it an excellent option for retrofitting modern EV14 technology into older European or Domestic applications that utilize the older square-style EV1 harness connectors.

  • Flow Capacity: Rated at 35 lb/hr / 363 cc/min (261 g/min) at 300 kPa (43.5 PSI).
  • Volumetric Flow: ~381 cc/min (N-Heptane) / ~363 cc/min (Gasoline). *See Tech Note
  • Fuel & Seal Compatibility: Features high-quality Viton O-rings (Black Upper / Brown Lower) and stainless internals. Fully compatible with E85, Methanol, and Gasoline.
  • Electrical Connection: Features a Jetronic / Minitimer (EV1) connector housing (Square).
Spray Pattern: Type E (Dual Cone) Bosch E-Type Spray Pattern
Alpha (a): 22° (Split)
Beta (ß): 14° (Cone)
Gamma (?): 0° (Straight)
Connector Orientation: Spray Orientation Guide

*Diagram defines spray angles (a, ß, ?, d) relative to connector.

Technical Specifications

Coil Resistance 12.0 Ohms (High-Z)
Connector Style Jetronic / EV1
Body Length 33.6 mm (Compact)
Flow Calibration Data (@ 3 Bar / 43.5 PSI)
Mass Flow (Factory):
261 g/min
Industry Std (N-Heptane):
~381 cc/min
Gasoline Estimate:
~363 cc/min

Dimensions & Fitment

The 0280158230 uses the EV 14 K (Compact) body geometry. It is the shortest standard EV14 length (33.6mm O-ring to O-ring).

Bosch EV14 Dimensions Family

*Diagram illustrates the EV14 family sizes. This product is the EV 14 K (Second from Left).

Technical Note: Flow Rating & Fluids

Bosch calibrates injectors using N-Heptane as a standard test fluid. However, most engines run on Gasoline, which has a higher density. We provide both ratings for transparency:

Volume (cc/min) = Mass Flow (g/min) ÷ Fluid Density (g/cc)
  • N-Heptane (0.684 g/cc): 261 ÷ 0.684 = 381.6 cc/min (Industry Standard Rating)
  • Gasoline (~0.720 g/cc): 261 ÷ 0.720 = 362.5 cc/min (Real World Estimate)
  • Factory new Genuine Bosch High-Performance Fuel Injector.
  • Factory installed o-rings top and bottom.
  • Shipped in factory-sealed Bosch boxes or in bulk bagged format as provided by Bosch.
  • Flow Matching: Injectors sold individually ("each") are not flow-matched by Racetronix. Flow matching is only available on specific pre-packaged sets (packs) when and if available. Purchasing multiple individual units does not guarantee a matched set.
  • Absolutely no returns on open-box fuel injectors. Know your application before making your purchase.

*Data Integrity Disclaimer: While we strive for absolute accuracy, some specifications for this part number (such as specific spray angles or OEM-specific O-ring colors) are derived from industry cross-reference data where official Bosch Motorsport documentation is unavailable. We strongly recommend that your tuner verifies all flow and latency (dead-time) data prior to final calibration.
