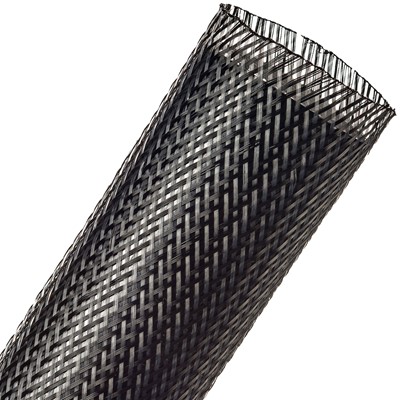

Loom, PET Woven Expanding, 2.0" Carbon

Item #: 299-PTN2.00CB  MPN : PTN2.00CB



per 5 Feet
This is an obsolete Item
 In Stock & Ready to Ship

299-PTN2.00CB - PET Woven Expanding, 2.0" Carbon

The FLEXO PET (PT) grade is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.

The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PT can be found in applications ranging from small office/home office to high tech wire and cable harnesses.

The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.

PT is braided from 10 mil polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.

Simple to install and terminate, Flexo PET is the ideal finishing touch on any wire management application. Protecting wire harnesses is easy with Flexo PET. The 150% expandability makes
installation simple
and efficient.
Larger sizes of Flexo PET are perfect for managing bundles
of wires up to 4 3/4"
in diameter
Small sizes of Flexo PET can
be used to protect, identify
and color code multiple wires. With many colors to choose
from, even complex color
coding schemes are easily designed and managed.
Flexo PET resists damage from heat, vibration, common automotive chemicals and abrasion, making it perfect for automotive customization and renovation projects.


Physical Properties Hard Vacuum Data (ASTM E-595 at 10-5 torr)
Monofilament Thickness (ASTM D-204) .010 TML .19
Flammability Rating UL-94 CVCM .00
Recommended Cutting Hot Knife WVR .16
Colors 35 Smoke D-Max (ASTM E-662) 56
Wall Thickness .025 Outgassing Medium
Tensile Strength - Yarn (ASTM D-2265) lbs. 7.5 Oxygen Index (ASTM D-2863) 21
Abrasion Resistance Medium Operating Temperatures
Specific Gravity 1.38 Minimum Continuous -94°F/-70°C
Moisture Absorption % (ASTM D-570) .1 - .2 Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C
Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected
Aromatic Solvents 2 Alipahtic Solvents 1
Chlorinated Solvents 3 Weak Bases 1
Strong Bases 2 Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1 Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1 Strong Acids 3
Strong Oxidants 2 Esters/Keytones 1
UV Light 1 Petroleum 1
Fungus (ASTM G-21) 1 Salts 1
Halogen Free Yes RoHS Yes


Part #
Expansion Range Standard Spool Put-Ups
Bulk Spool Shop Spool
1 1/2"
3 1/2"


  • Black
  • Carbon

MPN - Manufacturer P/N: PTN2.00CB
