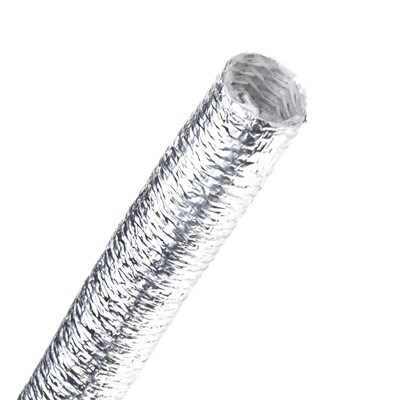

Thermal Wrap, Convoluted FG/Alum 4'x1"

Item #: 299-TCN1.00SV  MPN : TCN1.00SV

$11.50

per EACH
This is an obsolete Item


 In Stock & Ready to Ship

299-TCN1.00SV -Thermal Wrap, Convoluted FG/Alum 4'x1"

ThermaShield creates a thermal buffer between your wires, hoses and cables and the high temperature environments surrounding them.

ThermaShield is engineered by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation. This system provides superior protection from radiant heat by reflecting it away from sensitive electronics, wiring and hoses.

The four styles of ThermaShield; Tube, Convoluted, Wrap and Flat provide a full range of solutions for any application. The Wrap and Flat products use a very aggressive, high temperature adhesive that eliminates the need for high-temp mylar tape or other adhesive.

ThermaShield products will endure temperatures up to 1,200°F without delaminating, turning brittle or suffering adhesive failure. They are ideal in any situation where protection from radiant heat is a primary concern.

ThermaShield laminated sleeving is available in Silver.

Specifications:

Physical Properties Operating Temperatures
Flammability Rating Non-Flammable Minimum Continuous -76°F/-60°C
Recommended Cutting Scissor Maximum Continuous (MIL-I-23053) 392°F/200°C
Colors 1 Melt (ASTM D-2117) 2,048°F/1,120°C
Wall Thickness .042
Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected
Aromatic Solvents 1 Alipahtic Solvents 1
Chlorinated Solvents 1 Weak Bases 1
Strong Bases 1 Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1 Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1 Strong Acids 2
Strong Oxidants 2 Esters/Keytones 1
UV Light 1 Petroleum 1
Fungus (ASTM G-21) 1 Salts 1
Halogen Free Yes RoHS Yes
UL/CSA No

Sizes

Nominal
Size
Product
Part #
Wall
Thickness ±0.005"
4' Pcs. Put-Ups Available
Colors
Bulk Box
Box 8x8
Box 6x6 Box 4x4
1"
TCN1.00SV
.045"
88
30 20
9
Silver (SV)

MPN - Manufacturer P/N: TCN1.00SV
