Thermal Wrap, Flat Full Adhesive, 1.5"

Item #: 299-TSN1.50SV  MPN : TSN1.50SV


per Feet
This is an obsolete Item
 In Stock & Ready to Ship

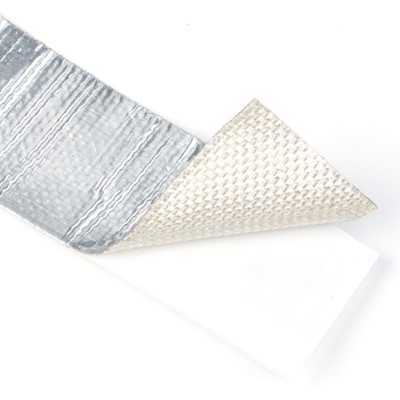

299-TSN1.50SV - Thermal Wrap, Flat Full Adhesive, 1.5"

ThermaShield creates a thermal buffer between your wires, hoses and cables and the high temperature environments surrounding them.

ThermaShield is engineered by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation. This system provides superior protection from radiant heat by reflecting it away from sensitive electronics, wiring and hoses.

The four styles of ThermaShield; Tube, Convoluted, Wrap and Flat provide a full range of solutions for any application. The Wrap and Flat products use a very aggressive, high temperature adhesive that eliminates the need for high-temp mylar tape or other adhesive.

ThermaShield products will endure temperatures up to 1,200°F without delaminating, turning brittle or suffering adhesive failure. They are ideal in any situation where protection from radiant heat is a primary concern.

ThermaShield laminated sleeving is available in Silver.


Physical Properties Operating Temperatures
Flammability Rating Non-Flammable Minimum Continuous -76°F/-60°C
Recommended Cutting Scissor Maximum Continuous (MIL-I-23053) 392°F/200°C
Colors 1 Melt (ASTM D-2117) 2,048°F/1,120°C
Wall Thickness .042
Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected
Aromatic Solvents 1 Alipahtic Solvents 1
Chlorinated Solvents 1 Weak Bases 1
Strong Bases 1 Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1 Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1 Strong Acids 2
Strong Oxidants 2 Esters/Keytones 1
UV Light 1 Petroleum 1
Fungus (ASTM G-21) 1 Salts 1
Halogen Free Yes RoHS Yes


Part #
Thickness ±0.006"
Standard Spool Put-Ups Available
Bulk Spool Shop Spool
1 1/2"
Silver (SV)

MPN - Manufacturer P/N: TSN1.50SV
