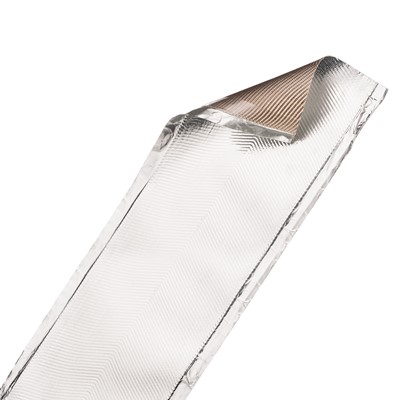

Thermal Wrap Sheet, Adhesive Strip 1.50"
299-TWN1.50SV - Thermal Wrap Sheet, Adhesive Strip 1.50"
ThermaShield creates a thermal buffer between your wires, hoses and cables and the high temperature environments surrounding them.
ThermaShield is engineered by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation. This system provides superior protection from radiant heat by reflecting it away from sensitive electronics, wiring and hoses.
The four styles of ThermaShield; Tube, Convoluted, Wrap and Flat provide a full range of solutions for any application. The Wrap and Flat products use a very aggressive, high temperature adhesive that eliminates the need for high-temp mylar tape or other adhesive.
ThermaShield products will endure temperatures up to 1,200°F without delaminating, turning brittle or suffering adhesive failure. They are ideal in any situation where protection from radiant heat is a primary concern.
ThermaShield laminated sleeving is available in Silver.
|Physical Properties||Operating Temperatures|
|Flammability Rating||Non-Flammable||Minimum Continuous||-76°F/-60°C|
|Recommended Cutting||Scissor||Maximum Continuous (MIL-I-23053)||392°F/200°C|
|Colors||1||Melt (ASTM D-2117)||2,048°F/1,120°C|
|Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected|
|Aromatic Solvents||1||Alipahtic Solvents||1|
|Chlorinated Solvents||1||Weak Bases||1|
|Strong Bases||1||Salt Water (O-S-1926)||1|
|Hydraulic Fluid (MIL-H-5606)||1||Lubricating Oil (MIL-A-8243)||1|
|De-Icing Fluid (MIL-A-8243)||1||Strong Acids||2|
|Fungus (ASTM G-21)||1||Salts||1|
|Standard Spool Put-Ups||Available
|Bulk Spool||Shop Spool|
|MPN - Manufacturer P/N:||TWN1.50SV|
