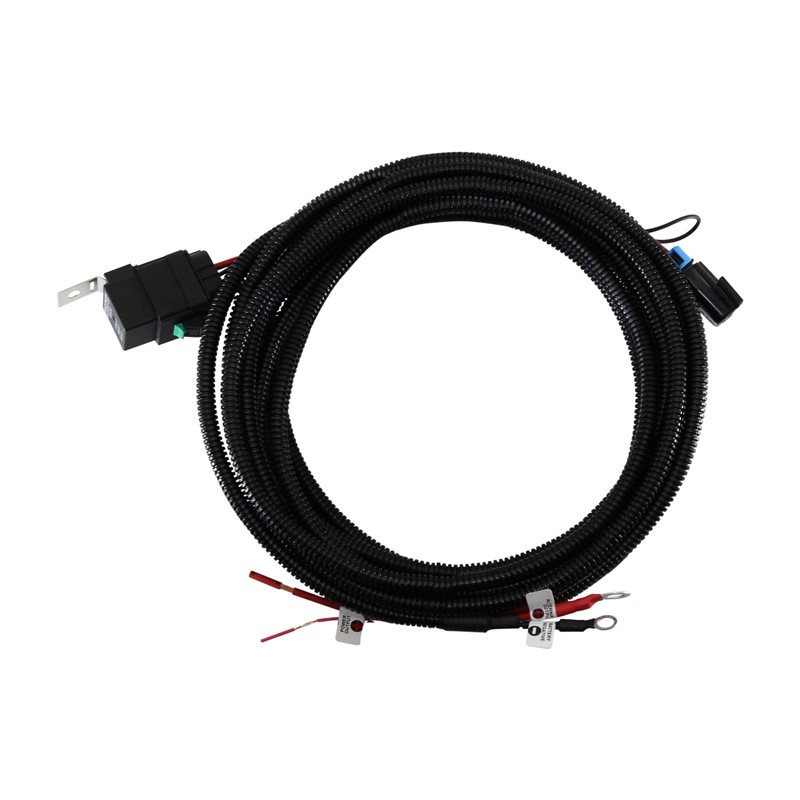

FPWH-009HD - Heavy-Duty Universal Relay Power Harness
- Weatherproof connectors

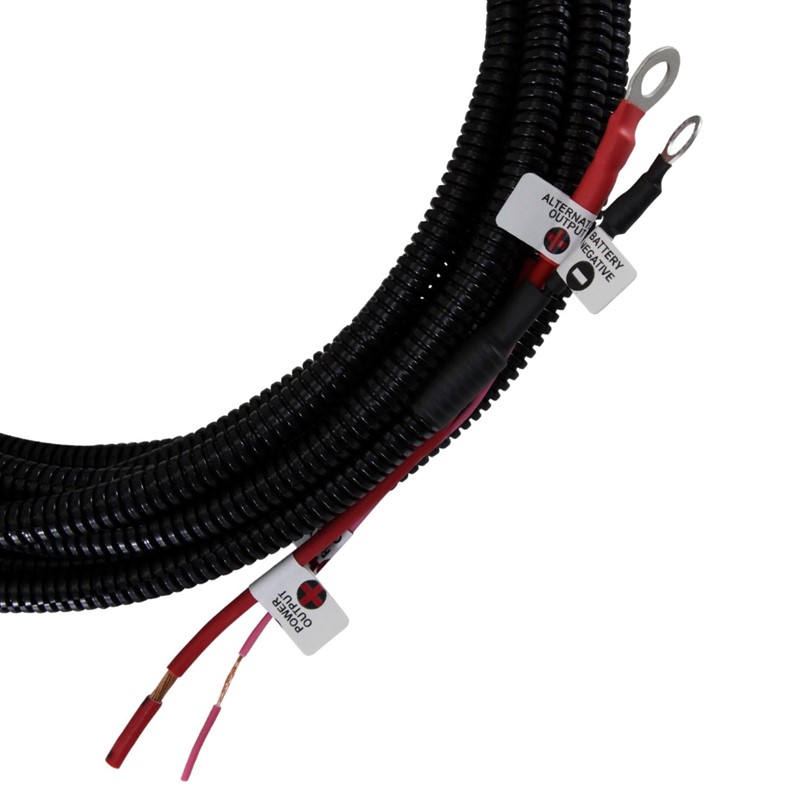

- Heavy 10-gauge automotive-grade copper wire 20' length
- 20' positive trigger wire

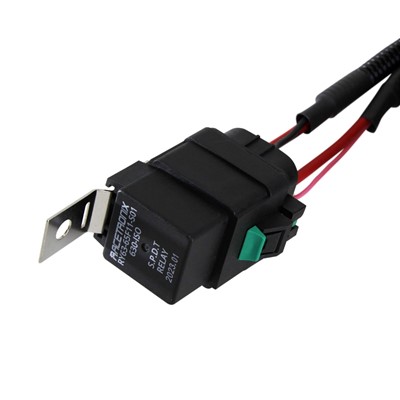

- Heavy-duty 40 amp 630-series weatherproof relay

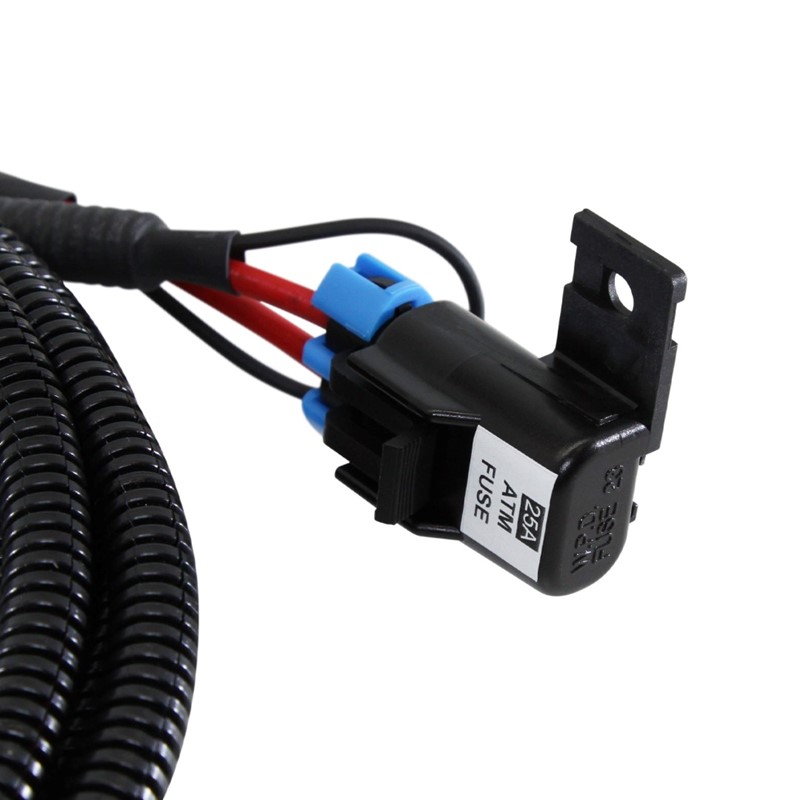

- Weatherproof fuse holder
- Silicon grease, spare fuse, wire ties, heat shrink, solder and terminals included
- Stainless steel mounting hardware
Typical Applications
- All fuel pump applications where a Racetronix plug and play harness is not available
- Electric fans
- Electric water, oil, and coolant pumps
- Lighting (fog, spot or driving lamps)
- Controlling any device requiring a high-current power source upwards of 30 amps
The Wiring Harness
This harness can be used to upgrade, replace or add to your existing vehicle wiring to control and power a wide range of devices. This harness uses a positive 12 volt signal to turn on the relay coil which in turn switches power directly from your battery or alternator to the attached load. This harness can be used to supply high-performance fuel pumps, high-power electric fans, electric water pumps, performance lighting or any device which draws up to a maximum 40 amps of current. Top-quality relays are used with 40 amp rated contacts. The relay socket and fuse holder terminals are rated at 40 amps to provide the best reliability. A five foot heavy-duty ground wire is included. Nylon ties, dielectric grease, terminal assortment, heat-shrink tubing assortment, solder, ATC fuses and stainless self-tapping screws are included.
NOTE: Although this harness's components are rated at a maximum of 40 amps the constant current load should not exceed 25-30 amps. This is because the performance of all electrical components decreases with as temperature increases. It is good practice to locate the fuse and relay as far away from sources of heat as possible. Some electrical loads such as fan motors have a high inrush current upon startup which also has to be factored into this equation.
Please see this graph for temperature derating curves:
Attention to detail in every Racetronix harness is evident at first glance. Racetronix spares no expense to ensure reliability, ease of installation and performance. All Racetronix harnesses are assembled using our computerized crimp-quality monitoring system and then circuit checked for the utmost in reliability. This Racetronix harness is backed by our limited lifetime warranty.
