Wastegate, 44mm Black Top

WG-44-0 - Wastegate, 44mm Black Top

The Racetronix® WG-44 compact 44mm wastegate measures only 4.17" high allowing it to be mounted in tight locations. This Racetronix wastegate also features two M10x1.0 top air ports and three bottom air ports for easy installation – there is no need to rotate the actuator housing to get to a port. Racetronix includes three M10x1.0 Titanium plugs to block off any unused air ports. The Inconel (NiCrFe) valve, Nitronic 60 valve guide + seat and lower 347 stainless steel housing are constructed from high temperature alloys for their unique combination of high corrosion, wear and galling resistance properties (prevents sticking). The top actuator housing is CNC machined from lightweight T6-6061 billet aluminum which is available in a range of anodized colors. All Racetronix wastegates are designed to optimize actuator-to-valve area ratio to provide maximum control and a wide dynamic flow capacity utilizing a fibrous Boron silicone diaphragm and o-ring seal for high-temperature handling and long life.

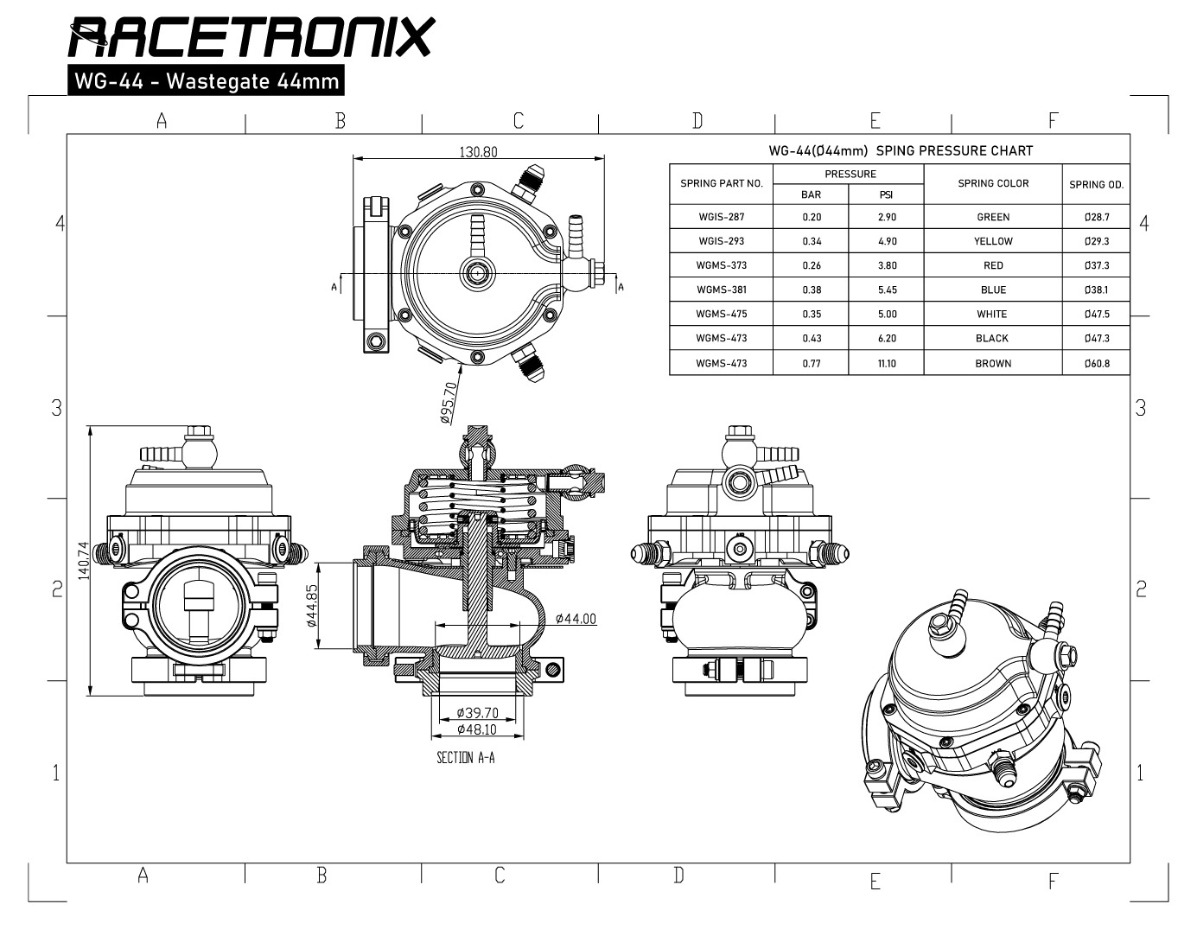

Racetronix utilizes 304 stainless steel v-band connections and includes both inlet and outlet mating flanges and clamps. The 304 stainless steel flanges feature chamfered edges and are counter-bored to make welding simpler. Each wastegate also includes two pre-installed actuator springs. Please see the spring/pressure chart below and optional springs listed under add-ons. All Racetronix springs are manufactured from 17-7 PH stainless steel for consistent pressure delivery, even at high temperatures.

Racetronix wastegates also have integrated M8x1.0 water cooling ports that cycle a small amount of coolant through the actuator top via restricted openings to keep the temperatures down in extreme conditions. This feature is not required for typical street car applications but is a great addition for several scenarios, such as: road racing, low air flow in engine bay, actuator too close to exhaust components, rotary applications, etc. This feature uses little coolant so there is virtually no effect on the rest of the cooling system. Titanium M8x1.0 to -4AN JIC Male adapters are included to plumb these ports if required.

Racetronix® WG-44 44mm Wastegate Features:

• Compact Design (Only 4.17" Tall)
• Multiple Air Ports - 3 Lower, 2 Upper (includes two M10x1.0 T6 +SS banjo to barb adapters and three Titanium plugs for unused ports)
• Water Cooling Ports for Actuator Top (can be removed if not utilizing). -4AN JIC male adapters included.
• 347 Stainless Steel Valve Housing
• T6-6061 Billet Anodized Aluminum Actuator Housing
• 304 Stainless Heat Shield
• 304 Stainless Steel V-Band Inlet and Discharge Flanges
• 304 Stainless Steel V-Band Inlet and Discharge Clamps
• Inconel High-Temperature Alloy Racing Valve w/ Coated Stem (protects from leaded fuel)
• High-temperature Fibrous Boron Silicone Reinforced Actuator Diaphragm
• 17-7PH Stainless Steel Actuator Springs
• Nitronic 60 Stainless Steel Valve Seat
• Nitronic 60 Stainless Steel Valve Guide

Racetronix WG-44 Wastegate Flange Counterbore Sizes:

• Inlet: 1-7/8" OD Tubing (1.875")
• Discharge: 1-3/4" OD Tubing (1.750")

What's Inside the WG-44 Box:

• WG-44 Wastegate Assembly (WGMS-381 (5.45PSI) + WGMS-473 (6.2 PSI) Springs Pre-Installed)
• Two -4AN JIC Male to M8x1.0 Titanium removable water fittings (WG-WFIT)
• 304SS Inlet V-Band Clamp (WG-IBVA44) with 304SS Inlet V-Band Flange (WG-WIF44)
• 304SS Outlet V-Band Clamp (WG-EBVA44) with 304SS Outlet V-Band Flange (WG-WEF44)
• Valve Seat (WG-IVS44)
• Two M10x1.0 Banjo to Hose Barb Air Adapter Fittings
• Three M10x1.0 Plugs for unused air ports (WG-BOP-M101)

Racetronix wastegates are perfect for helping you regulate your boost levels more precisely in high power applications thereby reducing the chance of over-boosting and damaging your turbocharged engine.
