Fitting, 90° Rubber -6 » M12x1.5, washer
Quick Overview
- Rubber hose end, 90-degree swivel -6 hose to M12x1.5 male
- Screws straight into a metric port
- Sealing washer included
- Not for PTFE or push-lock hose
- E85 compatible, black anodized 6061-T6 aluminum
Show More
$17.05
per EACH (USD)Rubber Hose End, 90° Swivel, -6 Hose to M12x1.5 Male, with Washer, Black
Connects -6 braided rubber hose to an M12x1.5 metric port with a 90° swivel turn.

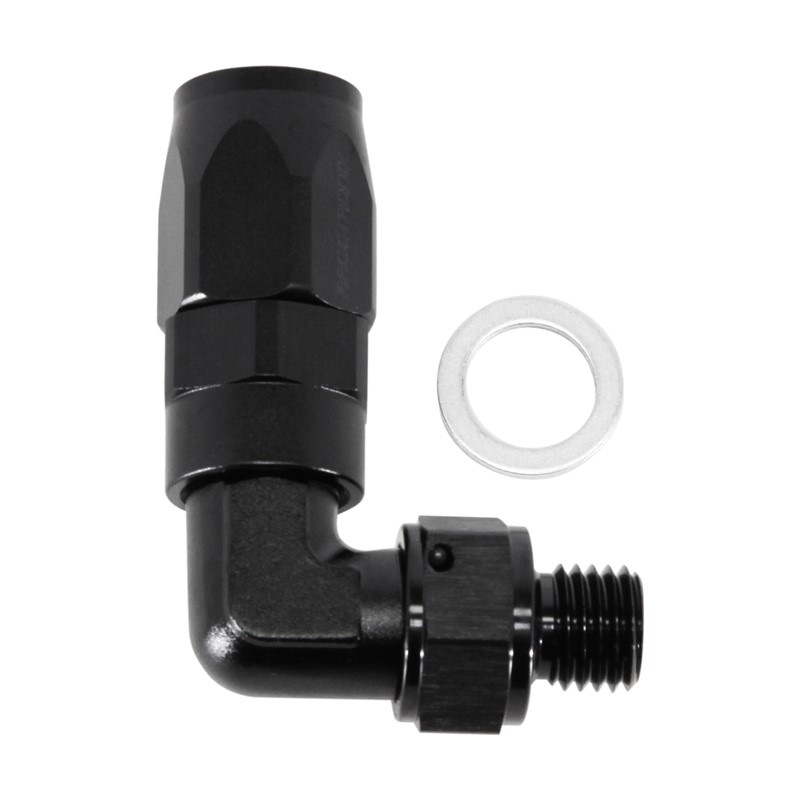

The Racetronix FIT-6RB90M1215 is a reusable 90-degree swivel hose end for -6 braided rubber hose with an M12x1.5 metric male end. A sealing washer is included.
Key features
- -6 rubber hose end.
- M12x1.5 metric male.
- 90° body, swivel.
- E85 compatible.
- 6061-T6 aluminum, black anodized.
Seal the metric end at the port face with the washer or O-ring the port is designed for. A washer is included.
Specifications
| Part number | FIT-6RB90M1215 |
| Hose size | -6 |
| Port end | M12x1.5 male |
| Angle | 90°, swivel |
| Fits | Braided rubber (CPE) hose: Racetronix RBSH and RBNH and standard-bore equivalents |
| Includes | Nut (socket) and fitting head, washer |
| Material | 6061-T6 aluminum, black anodized |
| Fuel compatibility | Gasoline and E85 |
Fits Racetronix RBSH stainless-braided and RBNH nylon-covered rubber hose, and standard-bore braided rubber (CPE) hose from other makers with standard AN inside and outside diameters. If you are not sure, compare the bore and outside diameter of your hose with ours. It does not fit PTFE hose, push-lock hose or nylon tube. For PTFE hose, use our PTFE hose ends.
The fitting is E85 compatible. The limit is the hose: although most CPE rubber hoses are rated for fuel, every CPE liner breaks down over time with fuel and solvents, and fuel smell around a parked vehicle is common. For long-term fuel lines we recommend our conductive-lined PTFE hose and PTFE hose ends. Rubber hose suits oil, coolant, vacuum and boost lines.
How it assembles
The hose end is two parts: the nut (socket) and the fitting head with its threaded nipple. There is no olive or ferrule.
- Wrap the cut mark in masking tape and cut the hose square with a thin cutting disc or fine-tooth saw. Trim any loose braid strands.
- Hold the nut in soft vise jaws and push the hose into it with a twisting motion until it bottoms against the step inside the nut.
- Mark the hose at the back of the nut with tape or a marker, so you can see if it pushes out while you tighten.
- Put a little grease on the nipple and its threads. We use silicone grease; wheel bearing grease also works.
- Start the fitting head into the nut by hand, then tighten with an aluminum AN wrench until the hexes are close (a gap of less than about 1/16" is normal). Check that the mark has not moved.
- Blow the hose out and check the assembly for leaks before you put it into service.
Questions? Ask on our support forum.
Lookup chart: rubber hose ends to metric male
Every size and angle in this range. This part is highlighted. Click a column heading to sort by it; click again to reverse. On a phone, swipe the chart sideways.
| Hose size | Metric male | Straight | 90° swivel |
|---|---|---|---|
| -6 | M12x1.5 male | — | FIT-6RB90M1215 |
| -6 | M22x1.5 male | FIT-6RBM2215 | FIT-6RB90M2215 |
| -8 | M22x1.5 male | FIT-8RBM2215 | FIT-8RB90M2215 |
| -10 | M22x1.5 male | FIT-10RBM2215 | FIT-10RB90M2215 |
| -12 | M22x1.5 male | FIT-12RBM2215 | FIT-12RB90M2215 |
Cross-reference: equivalent part numbers
The FIT-6RB90M1215 replaces or compares with these parts from other brands. "Similar" means a close match that differs in a detail such as finish, swivel style or body type.
| Brand | Part number | Match |
|---|---|---|
| Earl's | 849092ERL | Similar |
About this cross-reference. We compiled these equivalent part numbers from the manufacturers’ published catalogs and websites, and we update them when we can. We have not fitted or tested other brands’ parts with ours. Please check the hose size, bore and end type against your application before you order, or email [email protected] and we’ll help. Final fitment is the buyer’s responsibility. Brand names and part numbers belong to their owners and are used for reference only; Racetronix is not affiliated with these companies.
Frequently asked questions
Will it fit my hose?
It fits Racetronix RBSH stainless-braided and RBNH nylon-covered rubber hose and other standard-bore braided rubber hose. It does not fit PTFE hose, push-lock hose or nylon tube. Compare bore and outside diameter if you are unsure.
Can I use it on PTFE hose?
No. PTFE hose needs a hose end with a ferrule (olive). See our PTFE hose ends.
Can I reuse it?
Yes. The nut and fitting head can be reused. To remake a joint, cut the hose back to fresh hose and assemble again.
Can I use it for fuel?
The fitting is E85 compatible. CPE rubber hose breaks down over time with fuel, so for long-term fuel lines we recommend PTFE hose and PTFE hose ends.
Is it E85 compatible?
Yes. It is made from 6061-T6 aluminum and black anodized, and works with gasoline and E85.
